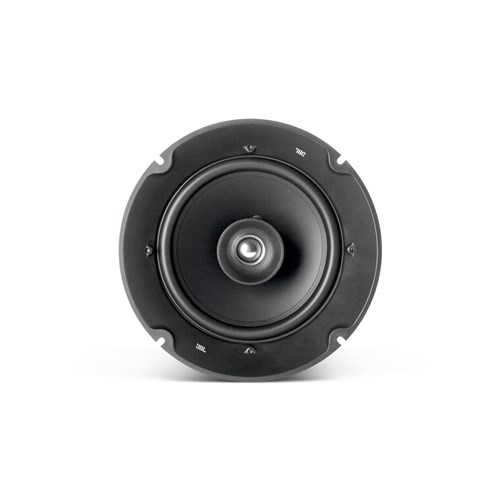

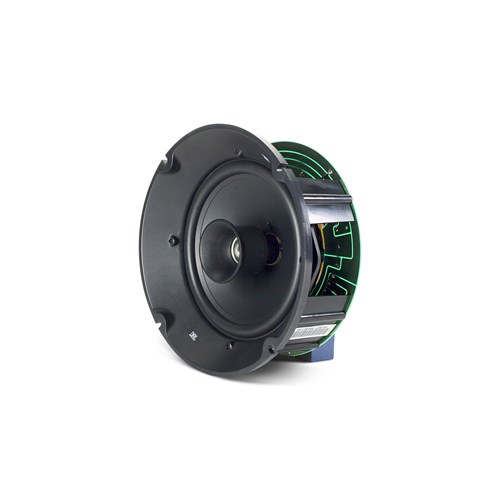

JBL Control 26-DT - 6.5 Inch Ceiling Loudspeaker Transducer Assembly - Priced as Each Sold as Pair

Product Code: JBL CTRL26-DT

Key Features
200 mm (8 inch) Ceiling Speaker Transducer Assembly. Driver, Crossover Network and 70V/100V Transformer Assembly. Fits Standard Backcans for 8 Inch Speakers. Backcan must have 5+ inches depth. Coverage of 90°. Taps at 60W, 30W and 15W (Plus 7.5W at 70V Only). 1.9 kg (4.2 lb). Priced as Each, Packed as Pairs. See wb-site for list of compatible backcans and grilles.
$431.06 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 6-8 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

6.5" Ceiling Loudspeaker Transducer Assembly

The Control 26-DT is a compact ceiling speaker assembly configured to install into standard ceiling backcans designed for 200 mm (8"") drivers.

Features

  • Use instead of standard 8"" driver. Fits standard backcans for 8"" speakers.
  • Comes complete with transducer, network and transformer.
  • Advanced crossover network provides natural sound and even coverage throughout listening area.
  • 60 W transformer for 70 V or 100 V distributed speaker lines.
  • Coaxial woofer with long-life butyl rubber surround and titanium coated tweeter.

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range 80 Hz - 20 kHz
Power Capacity 150 W Continuous Program Power; 75 W Continuous Pink Noise
Transformer Taps 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, & 15W
Nominal Coverage Angle 110 conical coverage
Directivity Index (DI) 4.6 averaged 500 Hz to 4 kHz
Rated Maximum SPL 107 dB @ 1 m (3.3 ft)
Low-Frequency 165 mm (6.5 in) Polypropylene-coated, 1" coil on aluminum former
High-Frequency 19 mm ( in) Titanium coated polyester
Termination Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire 12 AWG (2.5 mm2)
Outside Dimensions (H x Dia) 210 x 252 mm (8.3 x 9.9 in)190 mm (7.5 in) front of ceiling tile to back of backcan
Net Weight (ea) 4.2 kg (10 lb)
Shipping Weight (pair) 9.7 kg (21 lb)
