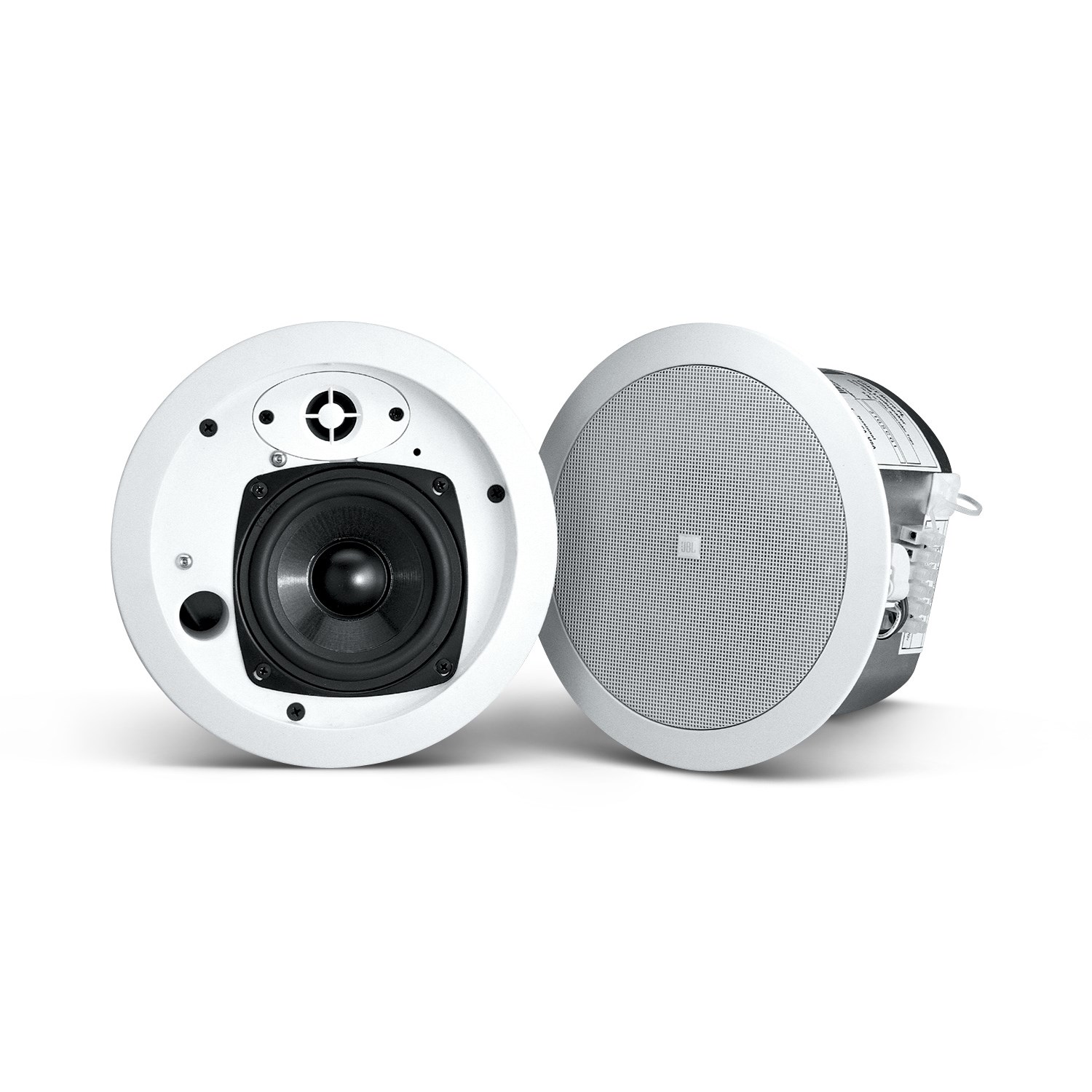

JBL Control 24CT Micro Plus - Background Music Ceiling Loudspeaker White with Transformer - Priced as Each Sold as Pair

Product Code: JBL CTRL24CT-MP-WH

Key Features
Medium Output Ceiling Speaker Assembly. Complete Assembly Includes Backcan, Grille and Tile Rails. Very Wide 150° Coverage. Shallow 100 mm (4 in) Depth. 70V/100V Input Transformers with Taps at 25W and 12W (Plus 6W at 70V Only). Priced as Each, Packed as Pairs. Master Pack Quantity: 8 Pieces.
$458.29 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Background Music Ceiling Loudspeaker

The Control 24CT MicroPlus is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems.

Features

  • Extremely wide 150° coverage.
  • Smooth frequency response.
  • Advanced crossover network provides very even coverage throughout listening area.
  • Components:
    115 mm (4.5 in) woofer, injection molded graphite cone with butyl rubber surround.
    12 mm (.5 in) polycarbonate tweeter for extended response.
  • Includes 25 W multi-tap transformer for 70 V/100 V systems.
  • Shallow 105 mm (4.1 inch) depth from back of baffle.
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range 80 Hz - 25 kHz
Power Capacity 30 W Continuous Program Power; 15 W Continuous Pink Noise
Transformer Taps 70 V: 25 W, 12 W, 6 W taps100 V: 25 W, 12 W taps
Nominal Sensitivity 85 dB SPL @ 1 m (3.3 ft)
Crossover Frequency 3.5 kHz, 3rd order low-pass plus 3rd order high-pass with conjugate
Rated Maximum SPL 99 dB @ 1 m (3.3 ft), 25 W tap
Low Frequency 115 mm (4.5 in) IMG (injection molded graphite), 24 mm (1 in) voice coil
High Frequency 12 mm (0.5 in) polycarbonate
