AMX HPX-U400-R-MET-6NE - Metreau 6-Button Ethernet Keypad Ramp Kit

Product Code: AMX FG565-11-BL

Key Features
The HPX-U400-R-MET-6NE, Metreau 6-Button Ethernet Keypad Ramp Mount Kit, is a Metreau 6-Button Ethernet Keypad in a carrier that allows it to be installed into the HydraPort HPX-600,900 and 1200 Connection Ports
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

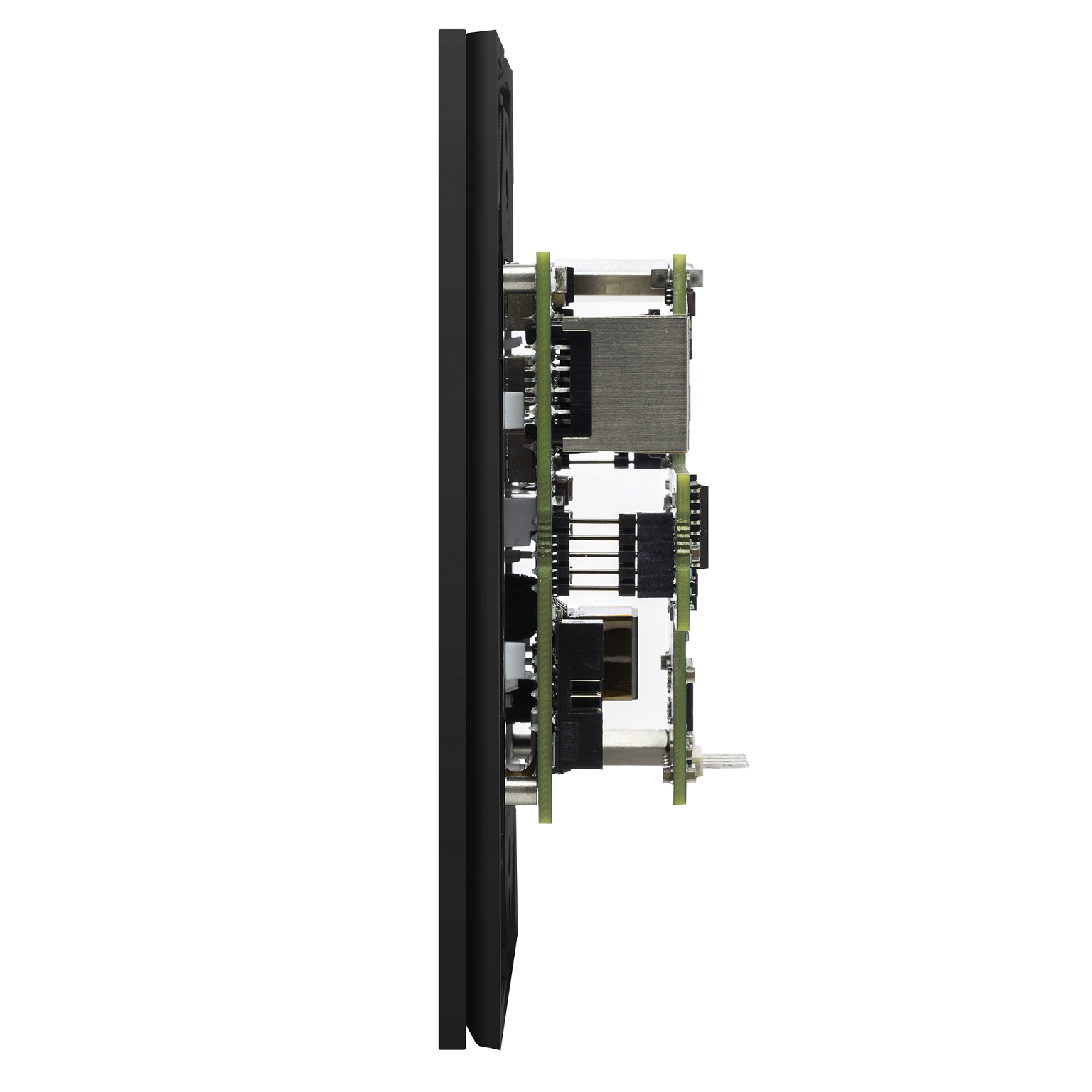

The HPX-U400-R-MET-6NE module is a Metreau 6-Button Ethernet Keypad in a ramped carrier that allows it to be installed into the HydraPort® chassis at an angle to improve usability.

Ideal for boardrooms, conference rooms, meeting rooms or auditoriums where equipment is permanently installed in the room and users must connect to that equipment from a conference table or lectern.

Features

  • Connects via Standard Protocols (Ethernet)  Simplifies cabling and installation by minimizing cable runs
  • Blue LEDs Glow to Indicate Button Selection  Improves usability by confirming the user's selection
  • Unrivaled Simplicity  Includes navigation wheel for simplified control

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Dimensions

4 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)

Power
  • PoE: PoE (Power over Ethernet), 802.3af, class 0
  • Power Connector: (1) RJ-45 Ethernet Connector, 10/100
Power Supply External, Required: POE injector or switch, conforming to the 802.3af standard including AMX s PS-POE-AF-TC (FG423-83), not included
Ethernet Ethernet Connection: (1) RJ-45 Ethernet Connector, 10/100
Environmental
  • Temperature (Operating): 32° to 104° F (0° to 40° C)
  • Humidity (Relative): 5% to 85%, non-condensing
  • Note: Intended for indoor use only
Front Panel Components
  • Pushbuttons available in a variety of field replaceable pre-printed buttons
  • Blue LEDs indicate activity
  • Navigation wheel
  • Light-level feedback
  • Sensor, 38 kHz only; supports standard AMX IR
Rear Panel Components
  • (1) RJ-45 Ethernet Connector, 10/100
  • (2) 8-pin, 0.100 (2.54 mm) IDC-type male header
FG Numbers FG565-11-BL
