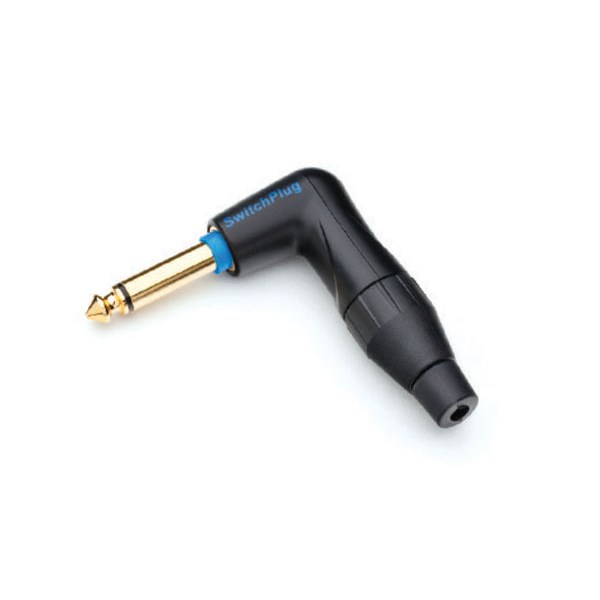

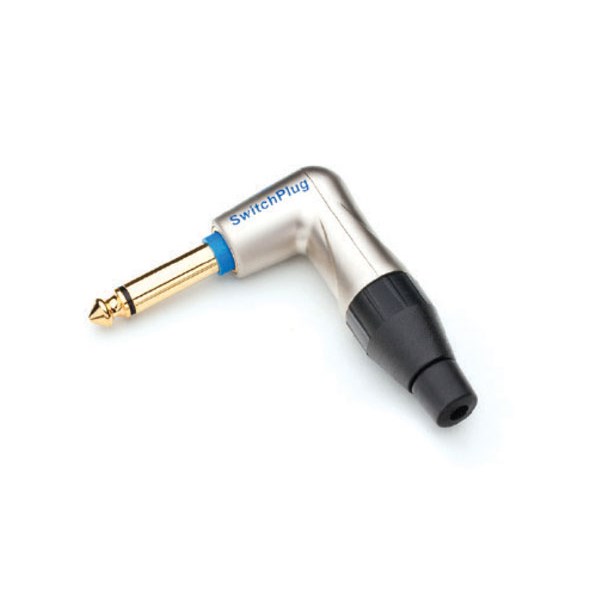

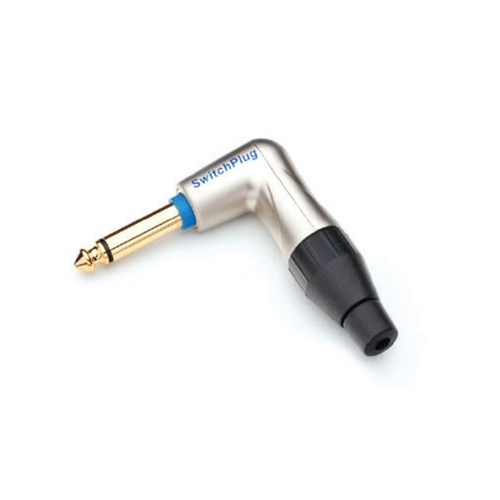

T Series - SwitchPlug - 1/4 and 3.5mm Plugs
The Amphenol T series SwitchPlug uses a unique 360 degree precision sliding helical spring contact design to quietly and accurately switch the signal circuit safely to ground during instrument changes under load, thereby avoiding annoying thumps, pops and squeals. The sliding ring contact self-cleans every time the plug is connected preventing excessive build up of oxidization and contamination. Activation is directly off the jacks full front face assuring a positive reference point every time, and as it works instantaneously on the main circuits there is no need for the use of magnets or other elaborate switching mechanisms.
WARNING! For use with instrument (guitar) applications only
*Refer to Technical Data for Jaws cable clamp specifications applicable to right angle connectors.
We offer a 90 day warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.
Insulation resistance (initial)After Damp Heat Test
>2GΩ≥1GΩ
UL94 V-0 PBT Resin or Modified PPE Resin - Black or Metal CuZn39Pb3
UL94 V-0 PBT Modified PPO Resin - Black
Santoprene
Brass /Ni or Au over 2µm Ni
