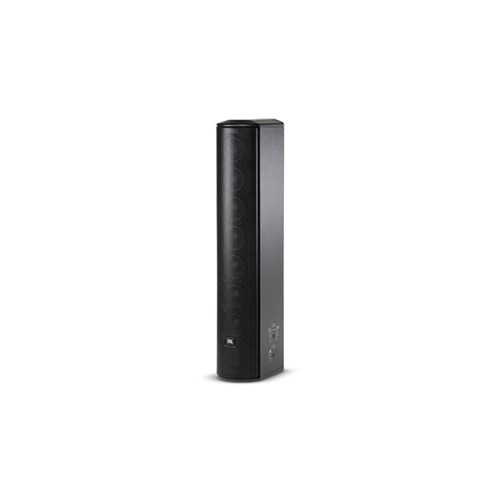

JBL CBT 50LA-1-BK - 50cm Straight Line Array Column Loudspeaker - Black

Product Code: JBL CBT50LA-1-BK

Key Features
50 cm Straight Line Array Column with 8 x 2 Drivers and Constant Beamwidth Technology, 20° vertical coverage, music (flat)/speech switch, 60W multi-tap transformer or 8 ohms, 80 Hz 20 kHz, 150W cont pink (600W peak), wall bracket included. (priced and sold individually)
$1,776.59 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

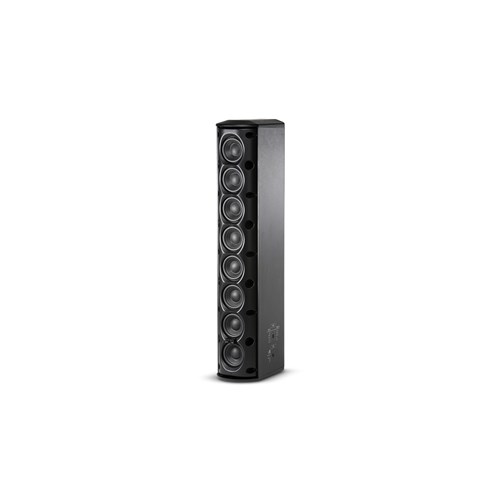

Constant Beamwidth Technology Line Array Column Loudspeaker with Eight 50 mm (2 in) Drivers. With improved mounting bracket for enhanced aiming flexibility.

The CBT 50LA-1, with Constant Beamwidth Technology, represents a breakthrough in pattern control, utilizing analog delay beam-forming and amplitude tapering to accomplish consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor passive column speakers.

Features

  • Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Dynamic SonicGuard overload protection
  • Built-in 70V/100V transformer, plus 8 ohm direct capability.
  • Swivel (pan) / tilt wall bracket included.
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Components Eight 50 mm(2 in) Full-Range
    Frequency Range (-10 dB) 80 Hz 20 kHz
    Coverage Pattern Vertical 20 (1.5 kHz - 16 kHz, 10)Horizontal 150 (ave, 1 kHz 4 kHz, 20)
    Sensitivity (2.83V@ 1m) 93 dB (speech mode, 2 kHz - 14 kHz)89 dB (music mode, 300 Hz - 18 kHz)
    Nominal Impedance 8 ohms
    Power Capacity (8 ohm setting) 150W (600W peak), 2 hrs100 W (400W peak), 100 hrs
    Max SPL Speech mode: 115 dB cont ave (121 peak)Music mode: 111 dB cont ave (117 peak)

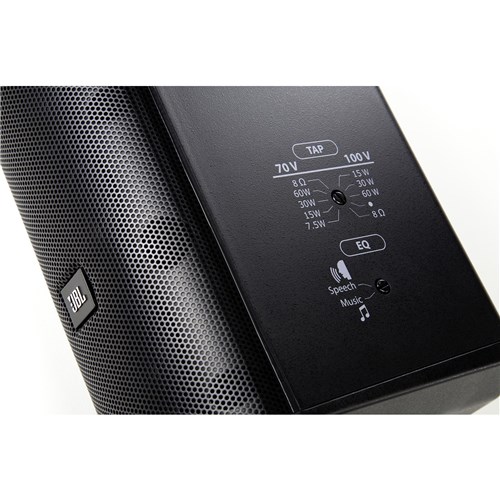

    70V/100V Transformer Taps 60W, 30W, 15W, (7.5W at 70V only), and 8 thru, via switch
    Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille
    Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
    Colors Black or White (-WH)
    Insert Points Ten M6 insert points on back panel.
    Mounting Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable 15 degree tilt, as well as 5 degree fixed increment points within the range. Ten threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
    Dimensions (H x W x D) 528 x 99 x 153 mm(20.8 x 3.9 x 6.0 in)
    Net Weight 4.1 kg (9.0 lb)
    Included Accessories Swivel (pan) / tilt wall bracket
    Optional Accessories MTC-PC2 terminal panel coverMTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
