JBL CBT50LA-LS-WH Line Array Column Loudspeaker with EN54:24 Certification / EN 54-24 Compliant for Life Safety Applications White

Product Code: JBL CBT50LA-LS-WH

Key Features
JBL CBT50LA-LS-WH 50Cm Tall Column Speaker, Wh,En54 1 Per Carton, 1 Per Masterpack
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

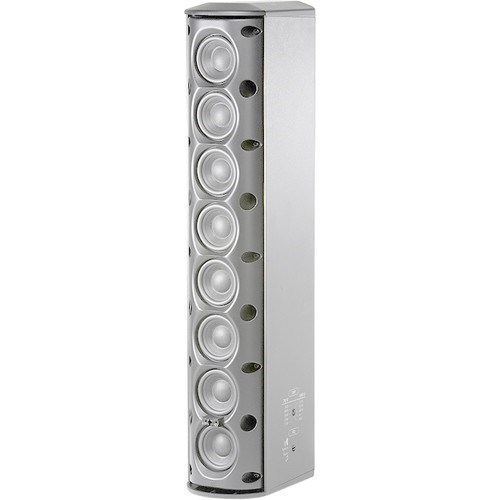

Line Array Column Loudspeaker with with Eight 50 mm (2 in) Drivers and EN54:24 Certification

The CBT 50LA-LS, with Constant Beamwidth Technology™, represents a breakthrough in pattern control, utilizing analog delay beamforming and amplitude tapering to accomplish consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor passive column speakers. This loudspeaker is EN 54-24 Compliant for life safety applications.

Features

  • Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • EN 54-24 Compliant for Life Safety Applications (when installed with included MTC-PC2 panel cover)
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Dynamic SonicGuard™ overload protection
  • Built-in 70V/100V transformer, plus 8 ohm direct capability.
  • Swivel (pan) / tilt wall bracket included.
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Drivers Eight 50 mm(2 in) Full-Range
Frequency Range (-10dB) 120 Hz – 20 kHz
Coverage Angle Vertical 20° (1.5 kHz - 16 kHz, ±10°) Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
Sensitivity 93 dB (speech mode, 2 kHz - 14 kHz) 89 dB (music mode, 300 Hz - 18 kHz)
Impedance 8 ohms
Power Rating 150W (600W peak), 2 hrs100 W (400W peak), 100 hrs
Maximum SPL (1m) Speech mode: 115 dB cont ave (121 peak)Music mode: 111 dB cont ave (117 peak)

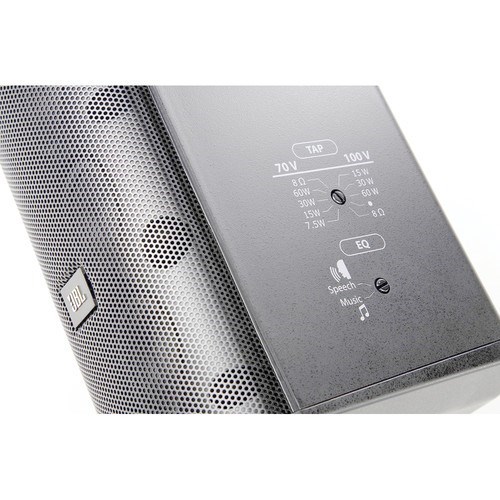

Transformer Taps 60W, 30W, 15W, (7.5W at 70V only), and 8Ω thru, via switch
Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Color Black or White (-WH)
Insert Points Ten M6 insert points on back panel.
Mounting Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points within the range. Ten threaded mounting points located on back panel located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Safety Agency Rating EN54-24:2008 certified (Certificate No. 0359-CPR-00238), when installed with MTC-PC2 terminal panel cover. In accordance with the requirements of IEC60849/EN60849.
Dimensions (H x W x D) 528 x 99 x 153 mm(20.8 x 3.9 x 6.0 in)
Net Weight 4.1 kg (9.0 lb)
Included Accessories Swivel (pan) / tilt wall bracketMTC-PC2 terminal panel cover
Optional Accessories MTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand

Accessories

JBL MTC-CBT-FM1-WH - Flush Mount Wall Bracket for CBT50LA-1 and 100LA-1 - White
JBL MTC-CBT-FM1-WH - Flush Mount Wall Bracket for CBT50LA-1 and 100LA-1 - White JBL MTC-CBT-FM1-WH
Estimated Lead time 6-8 weeks
$142.12 (EA)
Increase value Decrease value View Product
JBL MTC-CBT-SMB1 - Stand Mount Bracket for CBT50LA 100LA and 70J Speakers
JBL MTC-CBT-SMB1 - Stand Mount Bracket for CBT50LA 100LA and 70J Speakers JBL MTC-CBT-SMB1
Estimated Lead time 6-8 weeks
$209.63 (EA)
Increase value Decrease value View Product
JBL MTC-CBT-SUS3-WH - Suspension Bracket for All CBT Speakers Models - White
JBL MTC-CBT-SUS3-WH - Suspension Bracket for All CBT Speakers Models - White JBL MTC-CBT-SUS3-WH
In Stock
$124.36 (EA)
Increase value Decrease value View Product
JBL MTCPC2 Pair of Sealed Speaker Panel Covers for Input Terminal
JBL MTCPC2 Pair of Sealed Speaker Panel Covers for Input Terminal JBL MTC-PC2
In Stock
$80.47 (EA)
Increase value Decrease value View Product
JBL MTC-PC3_correct
JBL MTCPC3 Pair of Sealed Speaker Panel Covers for Input Terminal JBL MTC-PC3
In Stock
$87.21 (EA)
Increase value Decrease value View Product
