JBL AW295-LS High Power 2-Way All Weather Loudspeaker with 1 x 12 Inch LF / EN 54-24 Compliant for Life Safety Applications

Product Code: JBL AW295-LS

Key Features
JBL AW295-LS 12" 2-Way All Weather Loudspeaker With En54-24 Certification.
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

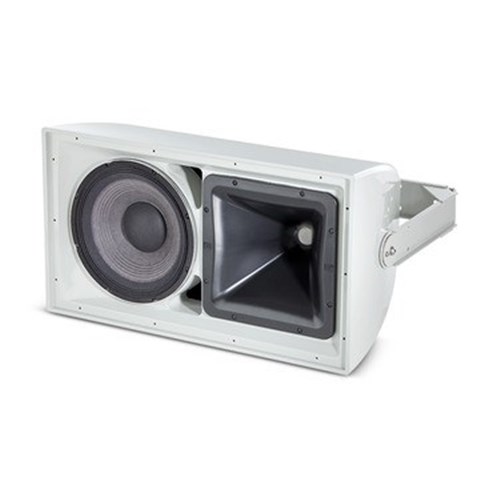

High Power 2-Way All Weather Loudspeaker with 1 x 12" LF & Rotatable Horn for Life Safety Applications

The AW295-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation.

Features

  • Weather-Resistant, All Fiberglass Enclosure
  • EN 54-24 Compliant for life safety applications
  • 90° x 50° Coverage
  • 2262H Differential Driver® Low- Frequency Driver
  • 2432H High Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable wave guide for vertical or horizontal orientation

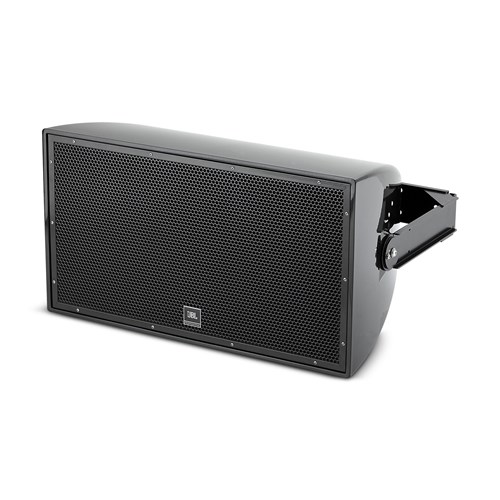

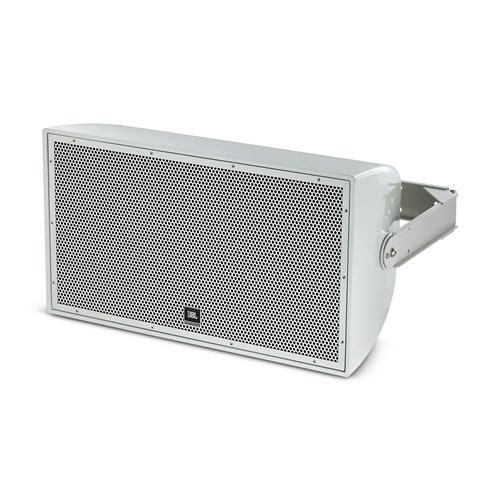

  • Available in Gray and Black finish
  • 400 W, 70/100V Transformer Included
  • U-type Mounting Bracket Included

Applications

  • Sports Facilities
  • Themed Entertainment Venues
  • Outdoor Entertainment Centers
  • Cruise Ships
  • Water Parks

Please Note: Sale Pricing is only available on our current stock. Future stock of this product is subject to our regular pricing. For any enquiries regarding pricing please contact us on 1800 00 77 80.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range (-10dB) 74 Hz – 20 kHz
Frequency Response (±3 dB) 106 Hz – 18 kHz
Coverage Pattern 90° x 50°, rotatable waveguide
Directivity Factor (Q) 12.6
Directivity Index (DI) 11 dB
Crossover Frequency 1.3 kHz
System Power Rating 400 W (1600 W peak), 100 hrs
Maximum SPL (1m) 125 dB-SPL cont avg (131 dB peak)
Maximum SPL (@ 4m) 111.92 dB
System Sensitivity (1w @ 1m) 98 dB SPL
Sensitivity (1W @ 4m) 85.9 dB SPL
Transformer Taps 70V: 400 W, 200 W, 100W100V: 400W, 200W
LF Driver 1 x JBL 2262H 300 mm (12 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
Nominal Impedance 8 ohms
Sensitivity (1W @ 1m, within operational band) 96 dB SPL
HF Driver JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Sensitivity 113 dB SPL
Waveguide PT-H95HF-1
Enclosure Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK)
Suspension Attachment 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.
Grille Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.
Input Connector CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
Environmental IP55C per IEC529
Dimensions (H x W x D in horizontal cabinet orientation) 409 x 732 x 452 mm(16.1 x 28.8 x 17.8 in)
Net Weight (each) 25.2 kg (55.5 lb)
