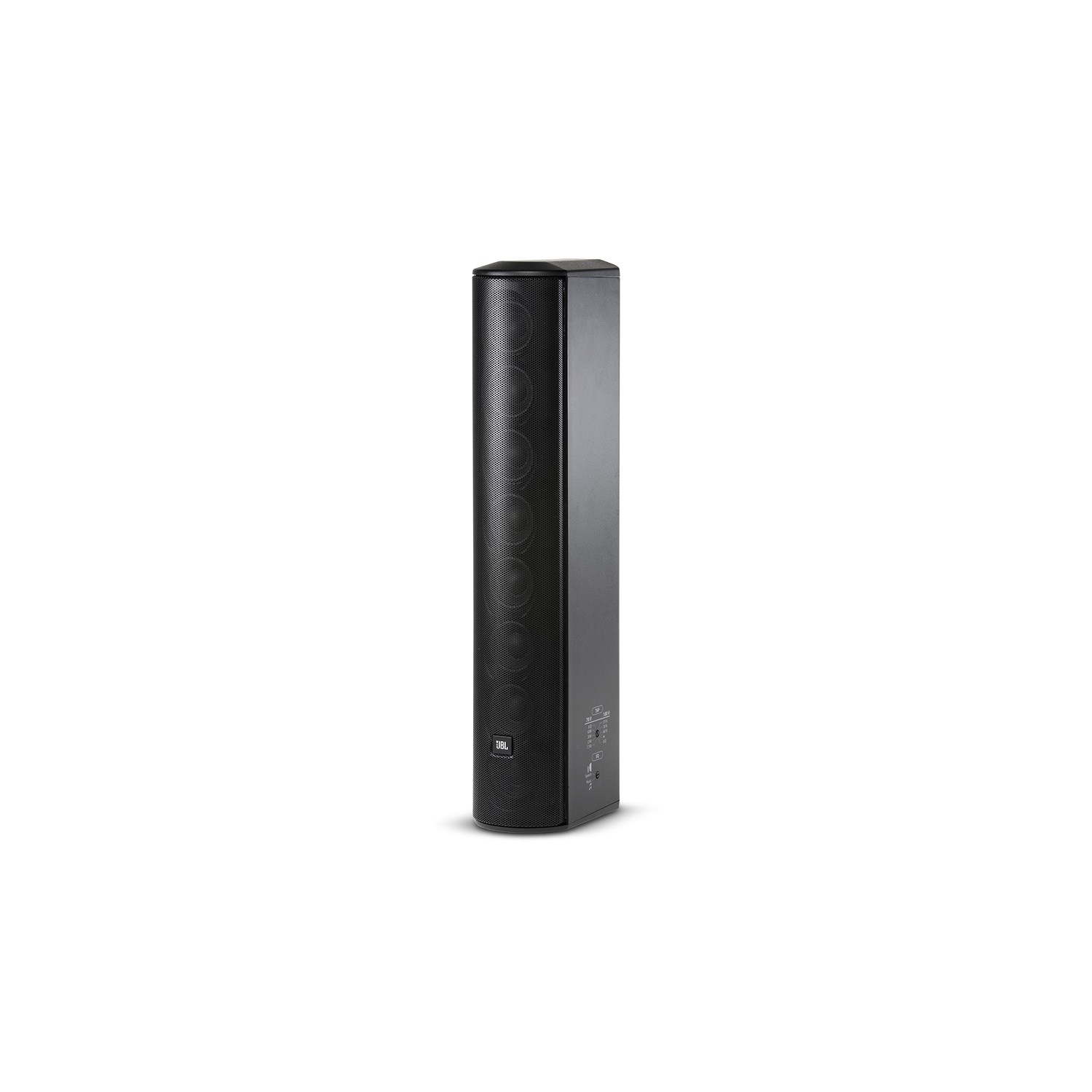

JBL CBT 50LA-LS - Line Array Column Loudspeaker with EN54:24 Certification Black

Product Code: JBL CBT50LA-LS-BK

Key Features
50CM Tall Column Speaker, EN54 1 per carton, 1 per Masterpack
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

Line Array Column Loudspeaker with with Eight 50 mm (2 in) Drivers and EN54:24 Certification

The CBT 50LA-LS, with Constant Beamwidth Technology, represents a breakthrough in pattern control, utilizing analog delay beamforming and amplitude tapering to accomplish consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor passive column speakers.

Features

  • Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • EN54-24 Compliant (when installed with included MTC-PC2 panel cover).
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Dynamic SonicGuard overload protection
  • Built-in 70V/100V transformer, plus 8 ohm direct capability.
  • Swivel (pan) / tilt wall bracket included.
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Trade Terms
    This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.

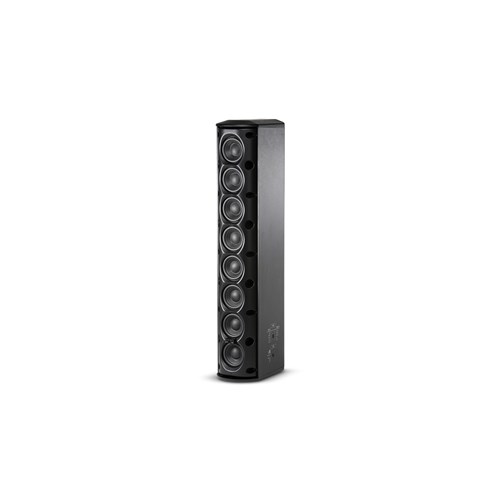

    Components Eight 50 mm(2 in) Full-Range
    Frequency Range (-10 dB) 120 Hz 20 kHz
    Coverage Pattern Vertical 20 (1.5 kHz - 16 kHz, 10)Horizontal 150 (ave, 1 kHz 4 kHz, 20)
    Sensitivity (2.83V@ 1m) 93 dB (speech mode, 2 kHz - 14 kHz)89 dB (music mode, 300 Hz - 18 kHz)
    Nominal Impedance 8 ohms
    Power Capacity (8 ohm setting) 150W (600W peak), 2 hrs100 W (400W peak), 100 hrs
    Max SPL Speech mode: 115 dB cont ave (121 peak)Music mode: 111 dB cont ave (117 peak)

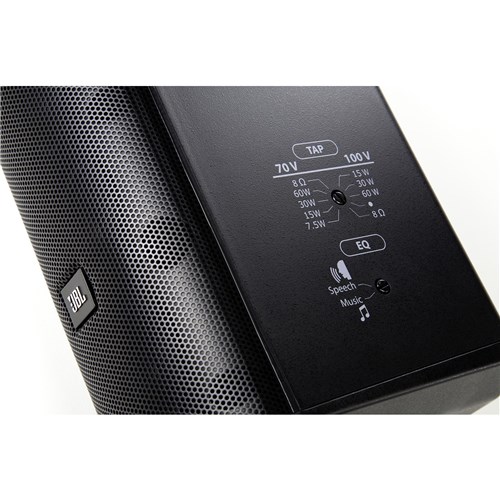

    70V/100V Transformer Taps 60W, 30W, 15W, (7.5W at 70V only), and 8 thru, via switch
    Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille
    Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
    Colors Black or White (-WH)
    Insert Points Ten M6 insert points on back panel.
    Mounting Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable 15 degree tilt, as well as 5 degree fixed increment points within the range. Ten threaded mounting points located on back panel located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
    Safety Agency Rating EN54-24:2008 certified (Certificate No. 0359-CPR-00238), when installed with MTC-PC2 terminal panel cover. In accordance with the requirements of IEC60849/EN60849.
    Dimensions (H x W x D) 528 x 99 x 153 mm(20.8 x 3.9 x 6.0 in)
    Net Weight 4.1 kg (9.0 lb)
    Included Accessories Swivel (pan) / tilt wall bracketMTC-PC2 terminal panel cover
    Optional Accessories MTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
