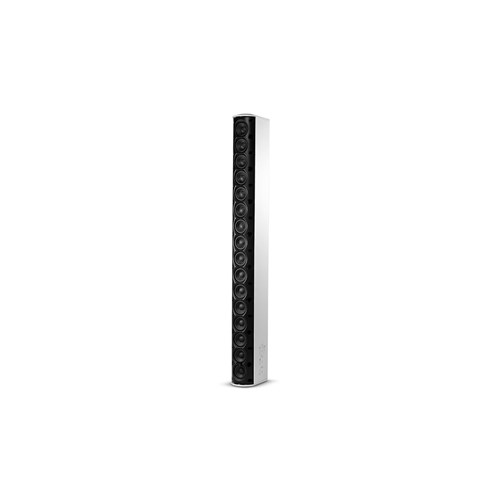

JBL CBT 100LA-LS - Line Array Column Loudspeaker with EN54:24 Certification White

Product Code: JBL CBT100LA-LS-WH

Key Features
(EN54 Life/Safety) Straight Line Array Column with 16 x 2 Drivers and Constant Beamwidth Technology. Switchable 40° or 15° vertical coverage, music (flat)/speech switch, 100W multi-tap transformer or 8 ohms, 80 Hz 20 kHz, 325W continuous pink noise, 100 cm tall (priced and sold individually) New in -1 version: Included wall bracket adjusts for SWIVEL (pan) as well as tilt aiming, for increased aiming versatility.
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

Line Array Column Loudspeaker with with Sixteen 50 mm (2 in) Drivers and EN54:24 Certification

The CBT 100LA-LS, with Constant Beamwidth Technology, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.

Features

  • Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • EN54-24 Compliant (when installed with included MTC-PC2 panel cover).
  • Vertical pattern coverage switchable between 40 for medium-throw coverage and 15 for long-throw applications.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Dynamic SonicGuard overload protection
  • Swivel (pan)/tilt wall bracket included.
  • Built-in 70V/100V transformer, plus 8 ohm direct capability.
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Trade Terms
    This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
    Components Sixteen 50 mm (2 in) Full-Range
    Frequency Range (-10 dB) 120 Hz 20 kHz
    Coverage Pattern Vertical:Narrow Mode: 15 (2 kHz - 16 kHz) ( 10) Broad Mode: 40 (1 kHz - 16 kHz) ( 10)Horizontal: 150 (ave, 1 kHz 4 kHz, 20)
    Sensitivity (2.83V@ 1m) Narrow: (speech mode) 96 dB (2 kHz - 14 kHz ) (music mode) 93 dB (300 Hz - 18 kHz) Broad: (speech mode) 93 dB (2 kHz - 14 kHz) (music mode) 90 dB (300 Hz - 18 kHz)
    EN54 Sensitivity (@ 4m) 76 dB (per EN54:24 spectrum and measurement conditions at 4 meters, set at broad/music mode.)
    Nominal Impedance 8 ohms (in Thru mode)15w@70v; 30w@100v Tap = 333 30w@70v; 60w@100v Tap = 167 60w@70v; 120w@100v Tap = 83 120w@70v; N/C@100v Tap = 42
    Power Capacity(8 ohm setting) 325 W (1300W peak), 2 hrs200 W (800W peak), 100 hrs
    Max SPL Narrow: (speech mode) 121 dB cont ave (127 peak) (music mode) 118 dB cont ave (124 peak) Broad: (speech mode) 118 dB cont ave (124 peak) (music mode) 115 dB cont ave (121 peak)
    EN54 Max SPL (@ 4m) 92 dB (per EN54:24 spectrum and measurement conditions, at 4 meters)
    70V/100V Transformer Taps 120W, 60W, 30W, (15W at 70V only), and 8 thru, via switch
    Reference Axis Specification and measurement referenced on-axis vertically and horizontally to the center point of the speaker baffle.
    Enclosure Fiberglass reinforced ABS cabinet with UL94-5VB flammability rating, painted aluminum grille
    Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
    Colors Black or White (-WH)
    Insert Points 18 M6 insert points on back panel.
    Mounting Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable 15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
    Dimensions (H x W x D) 1000 x 98.5 x 153 (39.4 in x 3.8 in x 6.0 in)
    Net Weight 7.2 kg (15.8 lb)
    Safety Agency EN54-24:2008 certified (Certificate No. 0359-CPR-00432), when installed with MTC-PC2 terminal panel cover. Cabinet UL94-5VB flammability rated. In accordance with the requirements of IEC60849/EN60849. Transformer UL registered per UL1876.
    Included Accessories Swivel (pan) / tilt wall bracket MTC-PC2 terminal panel cover
    Optional Accessories MTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
