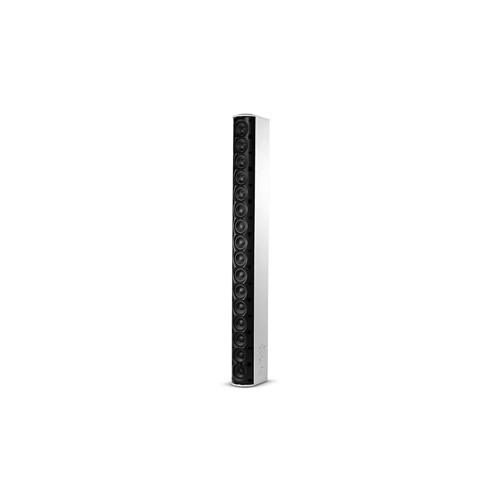

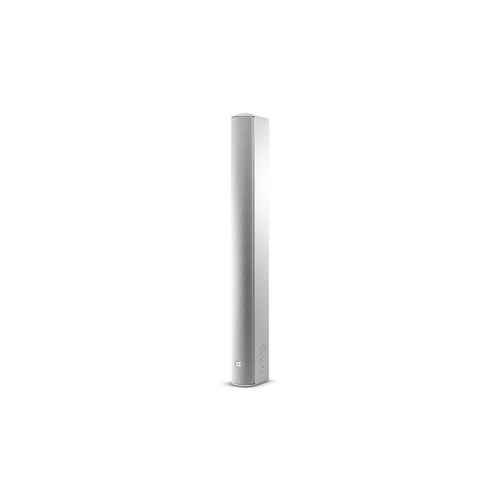

JBL CBT 100LA-1 - Constant Beamwidth Technology Line Array Column Loudspeaker White

Product Code: JBL CBT100LA-1-WH

Key Features
Straight Line Array Column with 16 x 2 Drivers and Constant Beamwidth Technology. Switchable 40° or 15° vertical coverage, music (flat)/speech switch, 100W multi-tap transformer or 8 ohms, 80 Hz 20 kHz, 325W continuous pink noise, 100 cm tall (priced and sold individually).
$3,236.55 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Constant Beamwidth Technology Line Array Column Loudspeaker with Sixteen 50 mm (2 in) Drivers. With improved mounting bracket for enhanced aiming flexibility.

The CBT 100LA-1, with Constant Beamwidth Technology, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.

Features

  • Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • Vertical pattern coverage switchable between 40 for medium-throw coverage and 15 for
    long-throw applications.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Dynamic SonicGuard overload protection
  • Swivel (pan)/tilt wall bracket included.
  • Built-in 70V/100V transformer, plus 8 ohm direct capability.
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Components Sixteen 50 mm (2 in) Full-Range
    Frequency Range (-10 dB) 80 Hz 20 kHz
    Vertical Coverage VerticalNarrow Mode: 15 (2 kHz - 16 kHz) ( 10)Broad Mode: 40 (1 kHz - 16 kHz) ( 10)Horizontal 150 (ave, 1 kHz 4 kHz, 20)
    Sensitivity (2.83V@ 1m) Narrow: (speech mode) 96 dB (2 kHz - 14 kHz )(music mode) 93 dB (300 Hz - 18 kHz)Broad: (speech mode) 93 dB (2 kHz - 14 kHz)(music mode) 90 dB (300 Hz - 18 kHz)
    Nominal Impedance 8 ohms (in Thru mode)
    Power Capacity (8 ohm setting) 325 W (1300W peak), 2 hrs200 W (800W peak), 100 hrs
    Max SPL Narrow: (speech mode) 121 dB cont ave (127 peak)(music mode) 118 dB cont ave (124 peak)Broad: (speech mode) 118 dB cont ave (124 peak)(music mode) 115 dB cont ave (121 peak)
    70V/100V Transformer Taps 120W, 60W, 30W (15W at 70V only), and 8 thru, via switch
    Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille
    Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
    Colors Black or White (-WH)
    Insert Points 18 M6 insert points on back panel.
    Mounting Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable 15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
    Dimensions (H x W x D) 1000 x 98.5 x 153(39.4 in x 3.8 in x 6.0 in)
    Net Weight 7.2 kg (15.8 lb)
    Included Accessories Swivel (pan) / tilt wall bracket
    Optional Accessories MTC-PC2 terminal panel coverMTC-CBT-FM1 flush-mount low-profile wall-mount bracket MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
