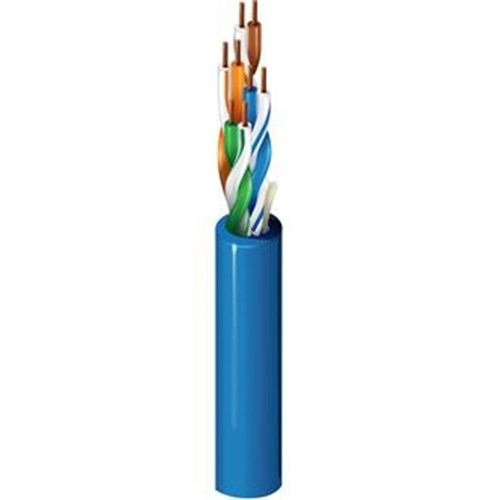

7814ANH - Belden Category 6 UTP Cable
24 AWG solid bare copper conductors, non-plenum, Polyolefin insulation, twisted pairs, central spline, rip cord, LSNH jacket.
SUITABLE APPLICATIONS:
Suitable Applications Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG, ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or CompositeVideo, AES/EBU, Digital Video, RS-422, 250MHz Category 6
Please call Madison for Project Quotations on Belden Products, or for pricing on any unlisted Belden products
We offer a 10 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.
PHYSICAL CHARACTERISTICS:
CONDUCTOR:
Number of Pairs
4
Total Number of Conductors
8
AWG
24
Stranding
Solid
Conductor Material
BC - Bare Copper
INSULATION:
Insulation Material
PO - Polyolefin
Pair Color Code Chart:
Pair Number
Insulation Color
Wire 1
Wire 2
1
Blue
White with Blue Stripe
2
Orange
White with Orange Stripe
3
Green
White with Green Stripe
Brown
White with Brown Stripe

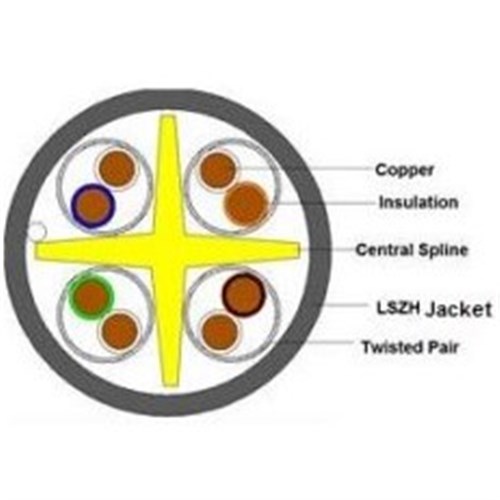

OVERALL CABLING:
Overall Cabling Fillers
Central Spline
OUTER SHIELD:
Outer Shield Material
Unshielded
OUTER JACKET:
Outer Jacket Material
LSNH – Low Smoke Non-Halogen
Outer Jacket Ripcord
Yes
OVERALL NOMINAL DIAMETER:
Overall Nominal Diameter
5.8 mm
MECHNICAL CHARACTERISTICS:
Operating Temperature Range
- 20 To + 75
Bulk Cable Weight
40.5 kg/km
Max. Recommended Pulling Tension
110 N
Min. Bend Radius (Install)
23.2 mm
APPLICABLE SPECIFICATION AGENCY COMPLIANCE:
APPLICABLE STANDARDS:
IEC Specification
11801 Category 6
EU RoHS Compliant (Y/N)
Y
EU RoHS Compliance Date
Oct 2007
TIA Specification
568-C.2 Category 6
Other Specification
NEMA WC-63.1 Category 6
FLAME TEST:
IEC Flame Test
60332-1 Flammability
OTHER PROPERTIES:
Halogen Content as per IEC 60754-1
≤ 5 mg/g
Acid Gas Emission pH as per IEC 60754-2
>4.3
Acid Gas Emission Conductivity as per IEC 60754-2
< 10 μs/mm
Smoke Density as per IEC 61034-2
≥ 60% Light Transmittance
SUITABILITY:
Suitability – Indoor (Y/N)
Suitability - Outdoor (Y/N)
N
Non-halogenated
PLENUM/NON-PLENUM:
Plenum (Y/N)
ELECTRICAL CHARACTERISTICS:
Nom. Mutual Capacitance @ 1 KHz
5.6 nF/100m
Maximum Capacitance Unbalance
330 pF/100m
Nominal Velocity of Propagation
70 %
Maximum Delay @ 100 MHz
538 ns/100m
Maximum Delay Skew
45 ns/100m
Maximum Conductor DC Resistance @ 20 Deg.C
9.38 Ohms/100m
Nominal Conductor DC Resistance @ 20 Deg.C
7.5 Ohms/100m
Maximum DCR Unbalance @ 20 Deg.C
5 %
Characteristic Impedance
100 ± 15 Ohms
Maximum Intended Operating Voltage
80 V RMS
