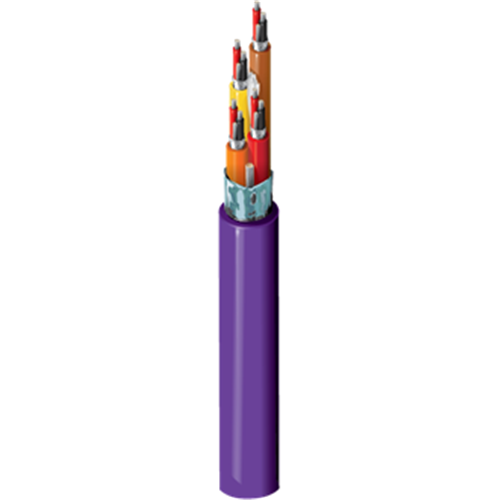

Belden Digital Audio Cable AES / EBU 8 Pair Foil Screened 24AWG Violet - 305m Reel

Product Code: 1805F Z4B1000

Key Features
24 AWG stranded (7x32) TC conductor, Datalene® insulation, pairs individually shielded with bonded Beldfoil® with a drain wire and have numbered and color-coded PVC jackets, overall Beldfoil® shield/drain wire + overall PVC jacket w/nylon rip cord.
$22.00 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Belden Multi-Conductor - Digital Audio Snake 8-Pair 24AWG Cable - Violet - 305m Reel

24 AWG stranded (7x32) TC conductor, Datalene® insulation, pairs individually shielded with bonded Beldfoil® with a drain wire and have numbered and color-coded PVC jackets, overall Beldfoil® shield/drain wire + overall PVC jacket w/nylon rip cord.

Suitable Applications:

Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio

Please call Madison for Project Quotations on Belden Products, or for pricing on any unlisted Belden products

Warranty

We offer a 10 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Construction Details:


CONDUCTOR
Size Stranding Material
24 7x32 TC - Tinned Copper

INSULATION
Material Nom. Insulation Diameter Color Code Notes
PE - Polyethylene (Foam) 0.068 in (1.7 mm) Red & Black HDPE

INNER SHIELD
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%

OUTER SHIELD
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%

INNER JACKET
Material Nom. Diameter
PVC - Polyvinyl Chloride 0.167 in (4.24 mm)

OUTER JACKET
Material Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.661 in Yes



Electrical Characteristics

ELECTRICALS
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop.
23.7 Ohm/1000ft (77.8 Ohm/km) 12 pF/ft (39 pF/m) 26 pF/ft (85 pF/m) 110 Ohm 76%

VOLTAGE
UL Voltage Rating
300 V RMS



Mechanical Characteristics

TEMPERATURE
UL Temperature Operating
60°C -30°C To +60°C

Max. Pull Tension

137 lbs (62.1 kg)

Bulk Cable Weight

195 lbs/1000ft (290 kg/km)
