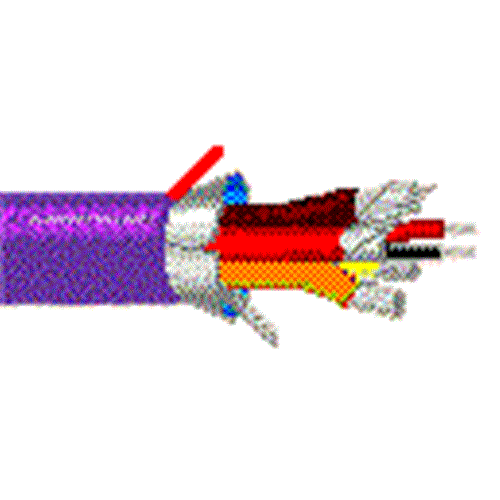

Belden Digital Audio Cable AES / EBU 12 Pair Foil Screened 24AWG Violet - 305m Reel

Product Code: 1806F Z4B1000

Key Features
24 AWG stranded (7x32) TC conductor, Datalene® insulation, pairs individually shielded with bonded Beldfoil® with a drain wire and have numbered and color-coded PVC jackets, overall Beldfoil® shield/drain wire + overall PVC jacket w/nylon rip cord.
$30.86 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents
24 AWG stranded (7x32) TC conductor, Datalene® insulation, pairs individually shielded with bonded Beldfoil® with a drain wire and have numbered and color-coded PVC jackets, overall Beldfoil® shield/drain wire + overall PVC jacket w/nylon rip cord.

Please call Madison for Project Quotations on Belden Products, or for pricing on any unlisted Belden products

Warranty

We offer a 10 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Physical Characteristics (Overall)
# Pairs12
AWG24
Stranding7x32
Conductor MaterialTC - Tinned Copper
Dia. (mm)0.6096
Total Number of Conductors:24
Insulation Trade NameDatalene
Insulation MaterialFHDPE - Foam High Density Polyethylene
Dia. (mm)1.7272
Inner Shield Trade NameBeldfoil
TypeTape
Inner Shield MaterialBonded Aluminum Foil-Polyester Tape
Coverage (%)100
Inner Shield Drain Wire Stranding:Stranded
Inner Shield Drain Wire Conductor Material:TC - Tinned Copper
Inner Jacket MaterialPVC - Polyvinyl Chloride
Nom. Dia. (mm)4.2418
Number1
ColorBrown and Numbered 1
Outer Shield Trade NameBeldfoil
Outer Shield MaterialAluminum Foil-Polyester Tape
AWG16
StrandingStranded
Drain Wire Conductor MaterialTC - Tinned Copper
Outer Jacket MaterialPVC - Polyvinyl Chloride
Outer Jacket Ripcord:Yes
Overall Nominal Diametre:21.057 mm
ColorRed & Black
Mechanical Characteristics (Overall)
Operating Temperature Range:-30°C To +60°C
UL Temperature Rating:60°C
Bulk Cable Weight:428.602 Kg/Km
Max. Recommended Pulling Tension:889.640 N
Min. Bend Radius/Minor Axis:215.900 mm
Applicable Specifications and Agency Compliance (Overall)
NEC/(UL) Specification:CMG
CEC/C(UL) Specification:CMG
EU Directive 2011/65/EU (ROHS II):Yes
EU CE Mark:Yes
EU Directive 2000/53/EC (ELV):Yes
EU Directive 2002/95/EC (RoHS):Yes
EU RoHS Compliance Date (mm/dd/yyyy):01/01/2004
EU Directive 2002/96/EC (WEEE):Yes
EU Directive 2003/11/EC (BFR):Yes
CA Prop 65 (CJ for Wire & Cable):Yes
MII Order #39 (China RoHS):Yes
Other Specification:AES/EBU
UL Flame Test:UL1685 FT4 Loading
CSA Flame Test:FT4
Plenum (Y/N):No
Notes (Overall)
Notes:Pair jackets and shields are bonded so both strip simultaneously with automatic stripping equipment. Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight.
