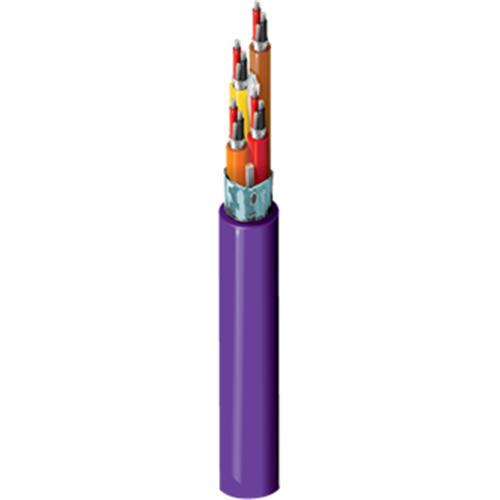

Belden Digital Audio Cable AES / EBU 4 Pair Foil Screened 24AWG Violet - 305m Reel

Product Code: 1803F Z4B1000

Key Features
24 AWG stranded (7x32) TC conductor, Datalene® insulation, pairs individually shielded with bonded Beldfoil® with a drain wire and have numbered and color-coded PVC jackets, overall Beldfoil® shield/drain wire + overall PVC jacket w/nylon rip cord.
$18.07 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents
24 AWG stranded (7x32) TC conductor, Datalene® insulation, pairs individually shielded with bonded Beldfoil® with a drain wire and have numbered and color-coded PVC jackets, overall Beldfoil® shield/drain wire + overall PVC jacket w/nylon rip cord.

Please call Madison for Project Quotations on Belden Products, or for pricing on any unlisted Belden products

Warranty

We offer a 10 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Physical Characteristics (Overall)
# Pairs4
AWG24
Stranding7x32
Conductor MaterialTC - Tinned Copper
Dia. (mm)0.6096
Total Number of Conductors:8
Insulation Trade NameDatalene
Insulation MaterialFHDPE - Foam High Density Polyethylene
Dia. (mm)1.7272
Inner Shield Trade NameBeldfoil
TypeTape
Inner Shield MaterialBonded Aluminum Foil-Polyester Tape
Coverage (%)100
Inner Shield Drain Wire Stranding:Stranded
Inner Shield Drain Wire Conductor Material:TC - Tinned Copper
Inner Jacket MaterialPVC - Polyvinyl Chloride
Nom. Dia. (mm)4.2418
Number1
ColorBrown and Numbered 1
Outer Shield Trade NameBeldfoil
Outer Shield MaterialAluminum Foil-Polyester Tape
AWG16
StrandingStranded
Drain Wire Conductor MaterialTC - Tinned Copper
Outer Jacket MaterialPVC - Polyvinyl Chloride
Outer Jacket Ripcord:Yes
Overall Nominal Diametre:12.395 mm
ColorRed & Black
Mechanical Characteristics (Overall)
Operating Temperature Range:-30°C To +60°C
UL Temperature Rating:60°C
Bulk Cable Weight:148.820 Kg/Km
Max. Recommended Pulling Tension:366.976 N
Min. Bend Radius/Minor Axis:127 mm
Applicable Specifications and Agency Compliance (Overall)
NEC/(UL) Specification:CMG
CEC/C(UL) Specification:CMG
EU Directive 2011/65/EU (ROHS II):Yes
EU CE Mark:Yes
EU Directive 2000/53/EC (ELV):Yes
EU Directive 2002/95/EC (RoHS):Yes
EU RoHS Compliance Date (mm/dd/yyyy):01/01/2004
EU Directive 2002/96/EC (WEEE):Yes
EU Directive 2003/11/EC (BFR):Yes
CA Prop 65 (CJ for Wire & Cable):Yes
MII Order #39 (China RoHS):Yes
Other Specification:AES/EBU
UL Flame Test:UL1685 FT4 Loading
C(UL) Flame Test:FT4
Plenum (Y/N):No
Notes (Overall)
Notes:Pair jackets and shields are bonded so both strip simultaneously with automatic stripping equipment. Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight.
