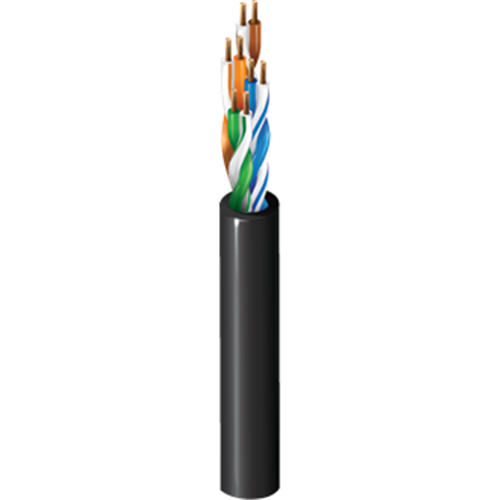

Name: Belden Multi-Conductor - CATSNAKE Flexible Ethernet CAT5e Cable 4 Pair 24AWG Black - 305m Reel
Price: 5.1429 AUD

(M)

Qty	Each (inc GST)	Each

Usage (Overall)
Suitable Applications:	Field Deployable Cat 5e Patch, CobraNet, eSnake, Ethersound, Digital Audio over Ethernet
Physical Characteristics (Overall)
# Pairs	4
AWG	24
Stranding	7x32
Conductor Material	BC - Bare Copper
Dia. (mm)	0.610
Total Number of Conductors:	8
Insulation Material	PO - Polyolefin
Dia. (mm)	1.041
Outer Shield Material	Unshielded
Outer Jacket Material	PVC - Polyvinyl Chloride
Overall Nominal Diametre:	6.350 mm
Number	1
Color	White/Blue Stripe & Blue
Mechanical Characteristics (Overall)
Operating Temperature Range:	-30°C To +75°C
Bulk Cable Weight:	38.693 Kg/Km
Max. Recommended Pulling Tension:	195.721 N
Min. Bend Radius/Minor Axis:	63.500 mm
Applicable Specifications and Agency Compliance (Overall)
EU Directive 2011/65/EU (ROHS II):	Yes
EU Directive 2000/53/EC (ELV):	Yes
EU Directive 2002/95/EC (RoHS):	Yes
EU RoHS Compliance Date (mm/dd/yyyy):	02/20/2006
EU Directive 2002/96/EC (WEEE):	Yes
EU Directive 2003/11/EC (BFR):	Yes
CA Prop 65 (CJ for Wire & Cable):	Yes
MII Order #39 (China RoHS):	Yes
Other Specification:	NEMA WC-63.1 Category 5, ICEA 661, Category 5e Patch, TIA/EI-568-B.2, Category 5e
Country	www.belden.com/p
Suitability - Indoor:	Yes
Suitability - Outdoor:	Yes
Plenum (Y/N):	No
Electrical Characteristics (Overall)
Maximum Capacitance Unbalance (pF/100 m):	66
Notes (Overall)
Notes:	EtherNet/IP is a trademark of ControlNet Internation, Ltd. under license by Open DeviceNet Vendor Association, Inc. Operating temperatures are subject to length de-rating.

Belden Multi-Conductor - CATSNAKE Flexible Ethernet CAT5e Cable 4 Pair 24AWG Black - 305m Reel
