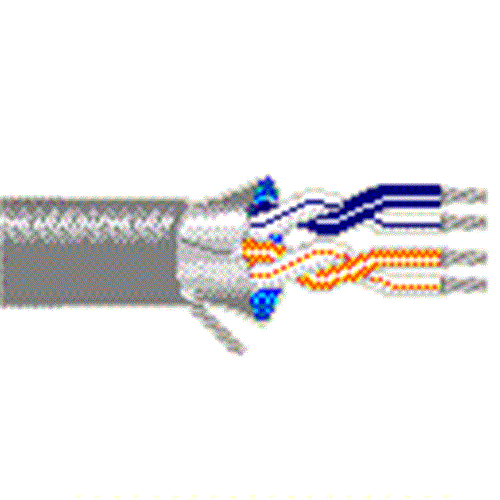

Name: Belden Multi-Conductor - Low Capacitance Computer Cable for EIA RS232/422 2 Pair 24AWG - 305m Reel
Price: 2.6571 AUD

(M)

Qty	Each (inc GST)	Each

Physical Characteristics (Overall)
# Pairs	2
AWG	24
Stranding	7x32
Conductor Material	TC - Tinned Copper
Total Number of Conductors:	4
Insulation Trade Name	Datalene
Insulation Material	FPE - Foam Polyethylene
Wall Thickness (mm)	0.330
Outer Shield Trade Name	Beldfoil
Type	Tape
Outer Shield Material	Aluminum Foil-Polyester Tape
Coverage (%)	100
Drain Wire Conductor Material	TC - Tinned Copper
Outer Jacket Material	PVC - Polyvinyl Chloride
Nom. Wall Thickness (mm)	0.889
Overall Nominal Diametre:	6.299 mm
Number	1
Color	White/Blue & Blue/White
Mechanical Characteristics (Overall)
Operating Temperature Range:	-20°C To +80°C
Non-UL Temperature Rating:	80°C (UL AWM Style 2919)
Bulk Cable Weight:	40.181 Kg/Km
Max. Recommended Pulling Tension:	97.860 N
Min. Bend Radius/Minor Axis:	63.500 mm
Applicable Specifications and Agency Compliance (Overall)
NEC/(UL) Specification:	CM
CEC/C(UL) Specification:	CM
AWM Specification:	UL Style 2919 (30 V 80°C)
EU Directive 2011/65/EU (ROHS II):	Yes
EU CE Mark:	Yes
EU Directive 2000/53/EC (ELV):	Yes
EU Directive 2002/95/EC (RoHS):	Yes
EU RoHS Compliance Date (mm/dd/yyyy):	01/01/2004
EU Directive 2002/96/EC (WEEE):	Yes
EU Directive 2003/11/EC (BFR):	Yes
CA Prop 65 (CJ for Wire & Cable):	Yes
MII Order #39 (China RoHS):	Yes
UL Flame Test:	UL1685 UL Loading
CSA Flame Test:	FT1
Plenum (Y/N):	No
Notes (Overall)
Notes:	Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low distortion data handling. Physical properties include good crush resistance and light weight.
