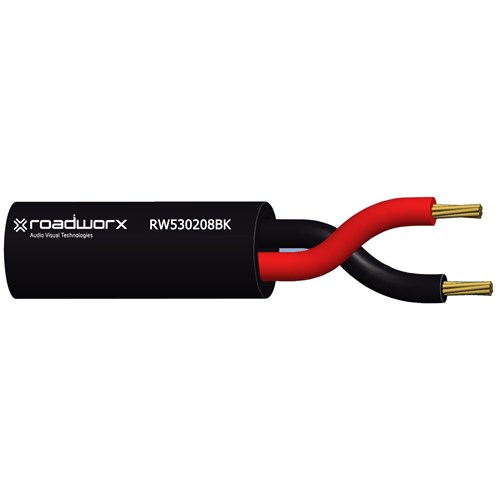

Roadworx RW530208 Speaker Cable 2 Conductor 8AWG Black 500m Reels

Product Code: RW530208BK500

Key Features

Speaker Cable 2 Conductor 8AWG Black 500M Reels

$11.31 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Roadworx RW530208 Speaker Cable 2 Conductor 8AWG Black 500M Reels

Description

64/0.4BC x 2C + PVC Insulation + PVC Sheath Φ14.2mm

Applicable Standards

N/A

Suitable Applications

Used to make the electrical connection between loudspeakers and audio amplifiers.

Please Note: This cable is able to be cut in lengths other than 50m increments if needed. Please contact Sales@madisonav.com.au to enquire about cut lengths.

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Cable Description

Conductor 64/0.4+/-0.006BC
Insulation Core: 2
Material: PVC
Colour: Black, Red
Min. Thickness 0.65mm / Nom. Thickness ≥0.80mm / Nom. O.D 6.0+/-0.1mm
Sheath Material : PVC / Colour: Black
Min. Thickness 0.8mm / Nom. Thickness ≥1.0mm / Nom. O.D 14.2+/-0.2mm
Spark Voltage : 3000V a.c

Electrical Properties

Conductor Max D.C Resistance 2.2 ohm/km 20°C
Voltage Test: Core to Core 2000V a.c/1min

Physical Properties

Insulation Elongation ≥100%
Insulation Tensile Strength ≥13 N/mm2
Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 563N
Min. Bend Radius (install) 142mm
Approximate Mass 27.97kg/100m
Sheath Printing ROADWORX RW530208BK Speaker cable, 2 conductor, 8AWG (meter marking)
