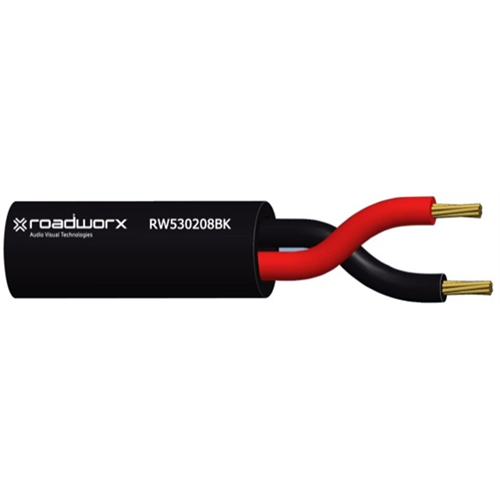

Roadworx RW530208 Speaker Cable 2 Conductor 8AWG Black 100m Reels

Product Code: RW530208BK100

Key Features

Speaker Cable 2 Conductor 8AWG Black 100M Reels

$11.31 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 12+ weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Roadworx RW530208 Speaker Cable 2 Conductor 8AWG Black 100M Reels

Description

64/0.4BC x 2C + PVC Insulation + PVC Sheath Φ14.2mm

Applicable Standards

N/A

Suitable Applications

Used to make the electrical connection between loudspeakers and audio amplifiers.

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.

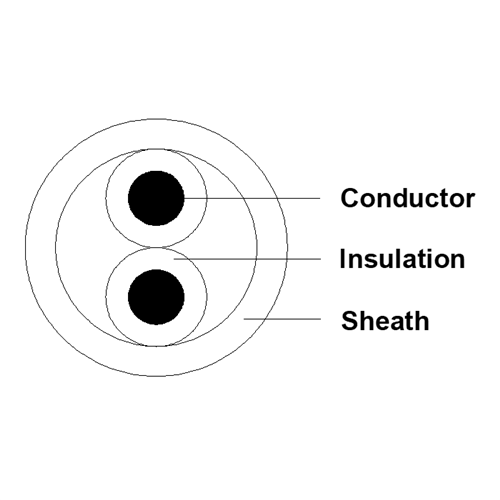

Cable Description

Conductor 64/0.4+/-0.006BC
Insulation

Core: 2

Material: PVC

Colour: Black, Red
Min. Thickness 0.65mm / Nom. Thickness ≥0.80mm / Nom. O.D 6.0+/-0.1mm
Sheath

Material : PVC / Colour: Black

Min. Thickness 0.8mm / Nom. Thickness ³1.0mm / Nom. O.D 14.2+/-0.2mm

Spark Voltage : 3000V a.c

Electrical Properties

Conductor Max D.C Resistance 2.2 ohm/km 20°C
Voltage Test: Core to Core 2000V a.c/1min

Physical Properties

Insulation Elongation ≥100%
Insulation Tensile Strength ≥13 N/mm2
Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 563N
Min. Bend Radius (install) 142mm
Approximate Mass 27.97kg/100m
Sheath Printing ROADWORX RW530208BK Speaker cable, 2 conductor, 8AWG (meter marking)
