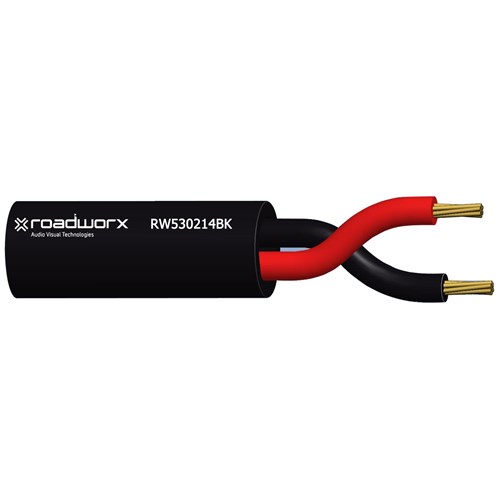

Roadworx RW530214 Speaker Cable 2 Conductor 14AWG (2.45Mm) Black 100m Reels

Product Code: RW530214BK100

Key Features

Speaker Cable 2 Conductor 14AWG (2.45Mm) Black 100M Reels

$3.54 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Roadworx RW530214 Speaker Cable 2 Conductor 14AWG (2.45Mm) Black 100M Reels

Description

50/0.25BC x 2C + PVC Insulation + PVC Sheath Φ8.8mm

Applicable Standards

N/A

Suitable Applications

Used to make the electrical connection between loudspeakers and audio amplifiers.

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Cable Description

Conductor 50/0.25+/-0.006BC
Insulation Core: 2
Material: PVC
Colour: Black, Red
Min. Thickness 0.51mm / Nom. Thickness ≥0.60mm / Nom. O.D 3.3+/-0.1mm
Sheath Material : PVC / Colour: Black
Min. Thickness 0.8mm / Nom. Thickness ≥1.0mm / Nom. O.D 8.8+/-0.2mm
Spark Voltage : 3000V a.c

Electrical Properties

Conductor Max D.C Resistance 7.4 ohm/km 20°C
Voltage Test: Core to Core 1000V a.c/1min

Physical Properties

Insulation Elongation ≥100%
Insulation Tensile Strength ≥13 N/mm2
Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 344N
Min. Bend Radius (install) 88mm
Approximate Mass 10.8kg/100m
Sheath Printing ROADWORX RW530214 Speaker Cable, 2 conductor, 14AWG (meter marking)
