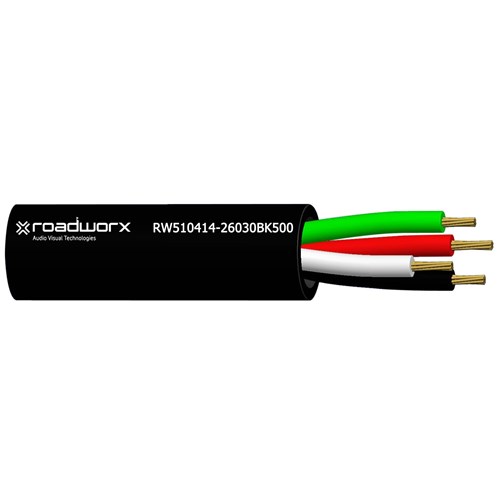

Roadworx RW510414-26030BK Speaker Cable 4 Conductor 14AWG (26/0.30) Black 500m Reels

Product Code: RW510414-26030BK500

Key Features

Speaker Cable 4 Conductor 14AWG (26/0.30) Black 500M Reels

$5.58 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Roadworx RW510414-26030BK Speaker Cable 4 Conductor 14AWG (26/0.30) Black 500M Reels

Description

26/0.3BC x 4C + PVC Insulation + PVC Sheath Φ9.3mm

Applicable Standards

N/A

Suitable Applications

Used to make the electrical connection between loudspeakers and audio amplifiers.

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Cable Description

Conductor 26/0.3+/-0.006BC
Insulation Core: 4
Material: PVC
Colour: Black, Red, Green, White
Min. Thickness 0.48mm / Nom. Thickness ≥0.60mm / Nom. O.D 3.1+/-0.1mm
Sheath Material : PVC / Colour: Black
Min. Thickness 0.68mm / Nom. Thickness ≥0.80mm / Nom. O.D 9.3+/-0.2mm
Spark Voltage: 3000V a.c

Electrical Properties

Conductor Max D.C Resistance 10.1 ohm/km 20°C
Voltage Test: Core to Core 1000V a.c/1min

Physical Properties

Insulation Elongation ≥100%
Insulation Tensile Strength ≥13 N/mm2
Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 515N
Min. Bend Radius (install) 93mm
Approximate Mass 13.89kg/100m
Sheath Printing ROADWORX RW510414-26030 Speaker Cable, 4 conductor, 14AWG (meter marking)
