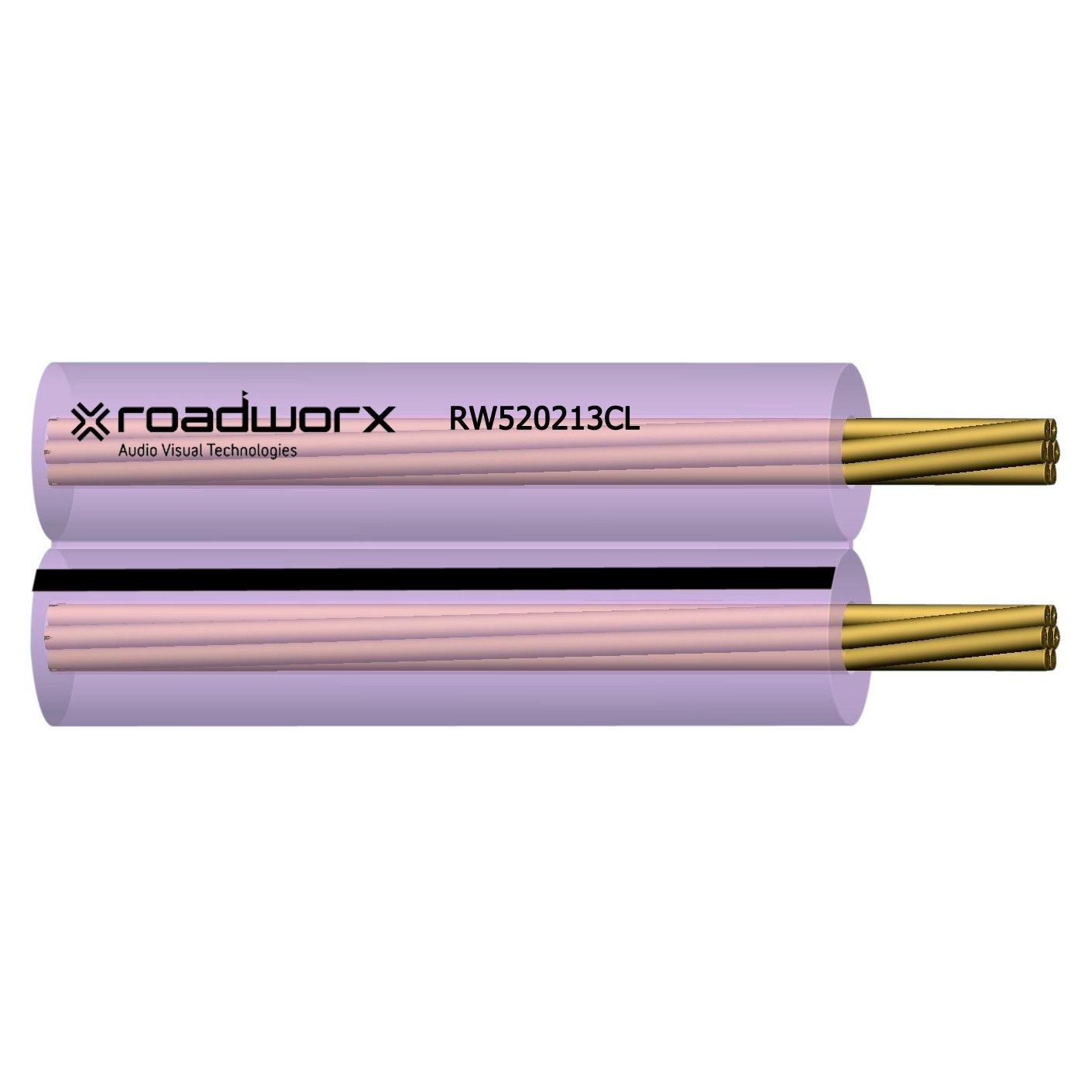

Roadworx RW520213Cl Speaker Cable 2 Conductor Flat 13 AWG Clear 100m Reels

Product Code: RW520213CL100

Key Features

Speaker Cable 2 Conductor Flat 13 AWG Clear 100M Reels

$2.91 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Roadworx RW520213Cl Speaker Cable 2 Conductor Flat 13 AWG Clear 100M Reels

Description

83/0.2BC x 2C + PVC Insulation Φ4.5 x 9.0mm

Applicable Standards

N/A

Suitable Applications

Used to make the electrical connection between loudspeakers and audio amplifiers.

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Cable Description

Conductor 83/0.2+/-0.006BC
Insulation Core: 2
Material: PVC
Colour: Transparent Pink/Black Strip
Min. Thickness 0.97mm / Nom. Thickness ≥1.15mm
Nom. O.D H: 4.5+/-0.1mm W: 9.0+/-0.2mm

Electrical Properties

Conductor Max D.C Resistance 7.7 ohm/km 20°C

Physical Properties

Insulation Elongation ≥100%
Insulation Tensile Strength ≥13 N/mm2

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 365N
Min. Bend Radius (install) 45mm
Approximate Mass 8.38kg/100m
Sheath Printing ROADWORX RW520213 Speaker Cable, 2 Conductor, 13AWG (meter marking)
