Roadworx RW520213Cl Speaker Cable 2 Conductor Flat 13 AWG Clear 500m Reels

Product Code: RW520213CL500

Key Features

Speaker Cable 2 Conductor Flat 13 AWG Clear 500M Reels

$2.91 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 12+ weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

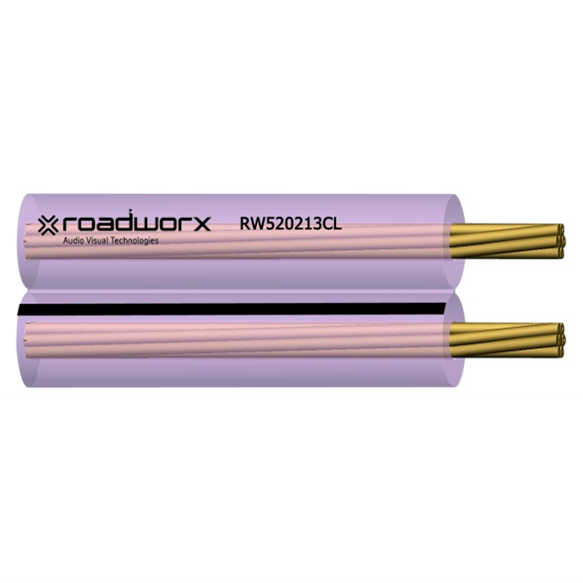

Roadworx RW520213Cl Speaker Cable 2 Conductor Flat 13 AWG Clear 500M Reels

Description

83/0.2BC x 2C + PVC Insulation Φ4.5 x 9.0mm

Applicable Standards

N/A

Suitable Applications

Used to make the electrical connection between loudspeakers and audio amplifiers.

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.

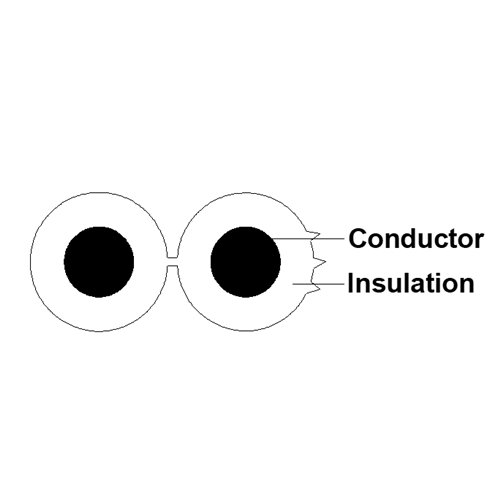

Cable Description

Conductor 83/0.2+/-0.006BC
Insulation

Core: 2

Material: PVC

Colour: Transparent Pink/Black Strip

Min. Thickness 0.97mm / Nom. Thickness ≥1.15mm
Nom. O.D H: 4.5+/-0.1mm W: 9.0+/-0.2mm

Electrical Properties

Conductor Max D.C Resistance 7.7 ohm/km 20°C

Physical Properties

Insulation Elongation ≥100%
Insulation Tensile Strength ≥13 N/mm2

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 365N
Min. Bend Radius (install) 45mm
Approximate Mass 8.38kg/100m
Sheath Printing ROADWORX RW520213 Speaker Cable, 2 Conductor, 13AWG (meter marking)
