Roadworx RW540414BK Speaker Cable 4 Conductor 2.5mm High Flex 500m Reels

Product Code: RW540414BK500

Key Features

Speaker Cable 4 Conductor 2.5Mm High Flex 500M Reels

$9.90 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

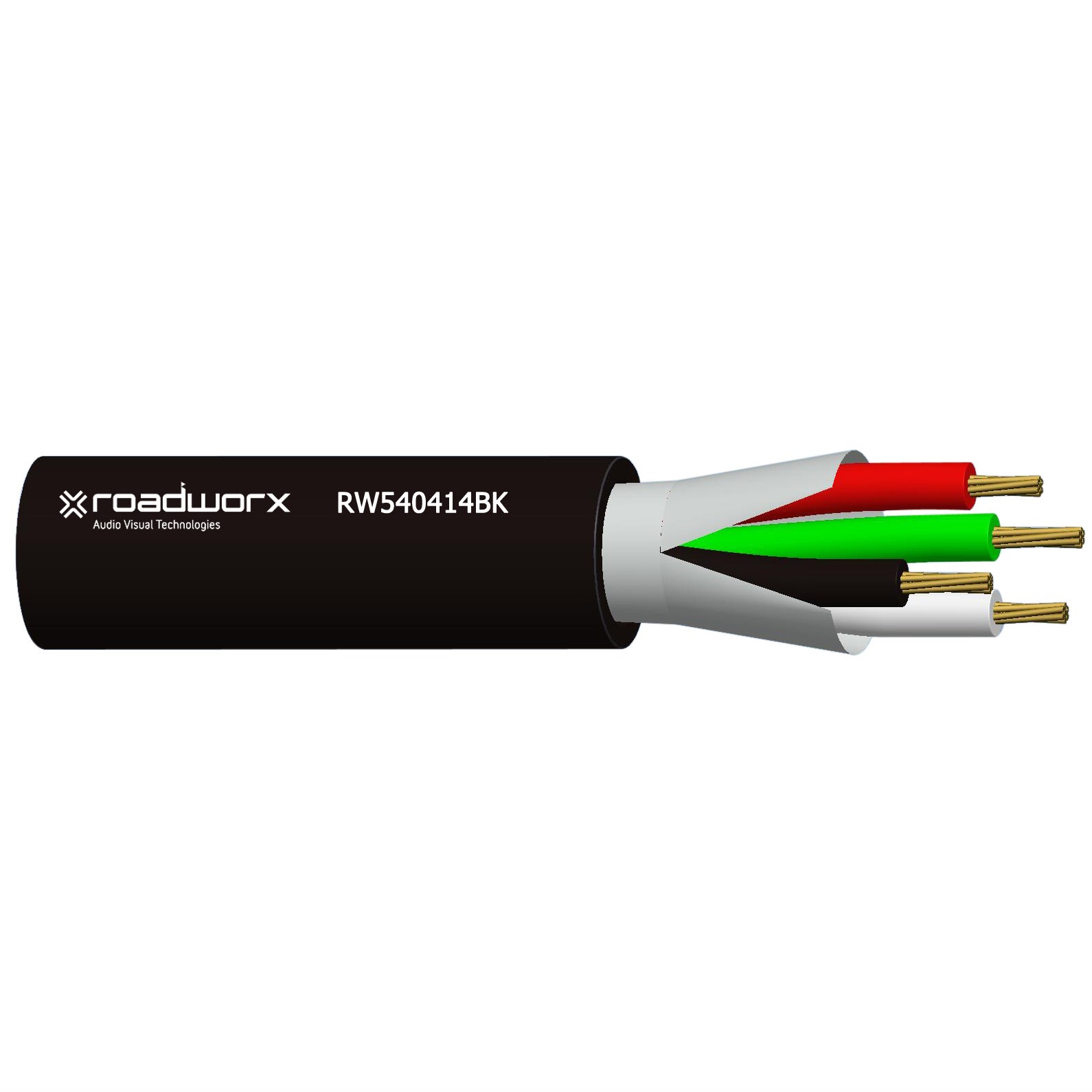

Roadworx RW540414BK Speaker Cable 4 Conductor 2.5MM High Flex 500M Reels

Description

140/0.15BC x 4C + PVC Insulation + PP Net + Cotton Tape + PVC Sheath Φ12.0mm

Applicable Standards

N/A

Suitable Applications

Used to make the electrical connection between loudspeakers and audio amplifiers.

Please Note: This cable is able to be cut in lengths other than 50m increments if needed. Please contact Sales@madisonav.com.au to enquire about cut lengths.

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Cable Description

Conductor 140/0.15+/-0.006BC
Insulation Core: 4
Material: V-75 PVC
Colour: Black, Red, Green, White
Min. Thickness 0.68mm / Nom. Thickness ≥0.80mm / Nom. O.D 4.0+/-0.1mm
Filler

PP Net

Cotton Tape
Sheath Material : V-75 PVC / Colour: Black
Min. Thickness 0.88mm / Nom. Thickness ≥1.1mm / Nom. O.D 12.0+/-0.2mm
Spark Voltage : 3000V a.c

Electrical Properties

Conductor Max D.C Resistance 7.3 ohm/km 20°C
Voltage Test: Core to Core 1000V a.c/1min

Physical Properties

Insulation Elongation ≥100%
Insulation Tensile Strength ≥13 N/mm2
Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 693N
Min. Bend Radius (install) 120mm
Approximate Mass 21.5kg/100m
Sheath Printing ROADWORX RW540414 SPEAKER CABLE, 4 CORE, 13AWG (meter marking)
