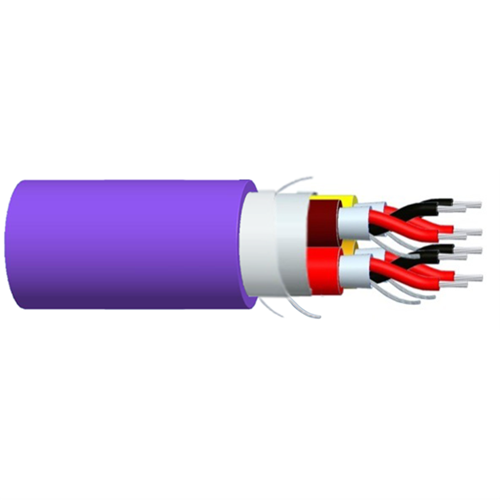

Roadworx RW121224 Digial Audio Cable AES - EBU 12-Pair Foil Screened Individually Jacketed 24AWG Violet - 300m Reel

Product Code: RW121224VI300

Key Features

Digial Audio Cable AES - EBU 12-Pair Foil Screened Individually Jacketed 24AWG Violet

$22.79 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Roadworx RW121224 Digial Audio Cable AES - EBU 12-Pair Foil Screened Individually Jacketed 24AWG Violet

Description

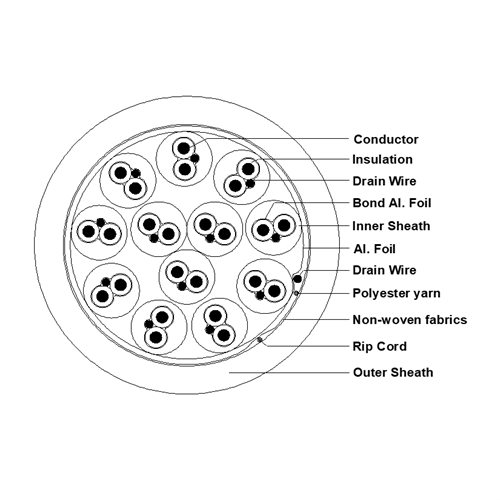

(7/0.203TC x 1P + Foam PE Insulation + Drain Wire + Bonded Al. Foil + PVC Inner Sheath) x 12C + Al. Foil + Drain Wire + Polyester yarn + Non-woven fabrics + Rip Cord + PVC Outer Sheath O.D 21.6mm

Applicable Standards

Reference to Belden 1806F

Suitable Applications

Used extensively for Audio systems.
*Not intended for direct connection to mains power.

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Cable Description

Conductor 7/0.203+/-0.006TC
Insulation

Pairs: 12

Material: Foam PE

Colour: Red/Black

Min. Thickness 0.35mm / Nom. Thickness ≥0.5mm / Nom. O.D 1.73+/-0.1mm
Screen Bonded Al. Foil 100% Coverage
Drain Wire

7/0.203+/-0.006TC
Inner Sheath Material: PVC / Colour: Brown and Numbered 1, Red and Numbered 2, Orange and Numbered 3, Yellow and Numbered 4, Green and Numbered 5, Blue and Numbered 6, Purple and Numbered 7, Grey and Numbered 8, White and Numbered 9, Black and Numbered 10, Light Brown and Numbered 11, Pink and Numbered 12
Min. Thickness 0.24mm / Nom. Thickness ≥0.4mm / Nom. Sheath O.D 4.4+/-0.2mm
Spark Voltage : 3000V a.c
Overall Screen Al. Foil Coverage 100%
Drain Wire 19/0.3+/-0.006TC
Filler Material : Polyester yarn
Material : Non-woven fabrics
Material : Rip Cord
Outer Sheath Material: PVC / Colour: Violet
Min. Thickness 1.1mm / Nom. Thickness ≥1.5mm / Nom. Sheath O.D 21.6+/-0.5mm
Spark Voltage: 3000V a.c

Electrical Properties

Rated Voltage 300V
Conductor Max D.C Resistance 89ohm/km 20°C
Characteristic Impedance 110 ohm
Nom. Mutual Capacitance 50pF/m (1KHz)
Voltage Test: Core to Core 1.5kV dc/1min
Voltage Test: Core to Screen 1.5kV dc/1min

Physical Properties

Inner Sheath Elongation ≥100%
Inner Sheath Tensile Strength ≥12 N/mm2
Outer Sheath Elongation ≥100%
Outer Sheath Tensile Strength ≥12N/mm2

Mechanical Properties

Operating Temperature Range -20 to 75
Max. Recommended Pulling Tension 665N
Min. Bend Radius (install) 216mm
Approximate Mass 47.8kg/100m
Sheath Printing TBA
