Roadworx RW110224 Digial Audio Cable 110 Ohm Parallel Construction AES - EBU 2-Pair Foil Screened 24AWG Violet - 300m Reel

Product Code: RW110224VI300

Key Features

Digial Audio Cable 110 Ohm Parallel Construction AES - EBU 2-Pair Foil Screened 24AWG Violet

$2.36 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 12+ weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

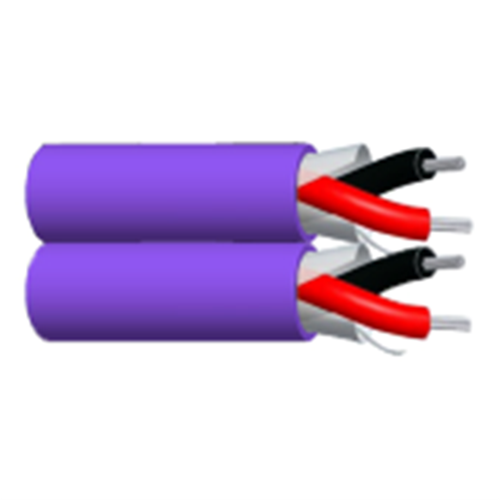

Roadworx RW110224 Digial Audio Cable 110 Ohm Parallel Construction AES - EBU 2-Pair Foil Screened 24AWG Violet

Description

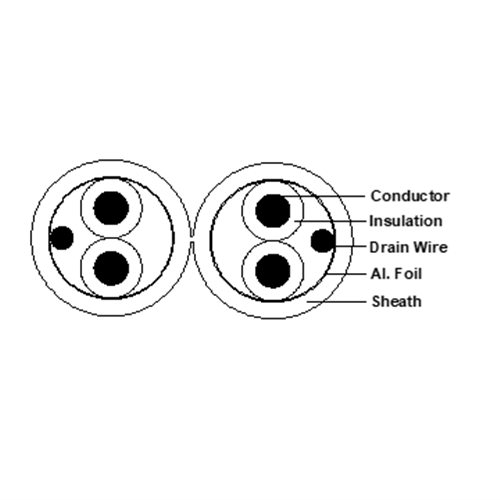

(7/0.203TC x 1P + Foam PE Insulation + Drain Wire + Al. Foil) x 2C + PVC Sheath O.D 4.6 x 10.6mm

Applicable Standards

N/A

Suitable Applications

Used extensively for Audio systems.
*Not intended for direct connection to mains power.

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Cable Description

Conductor 7/0.203+/-0.006TC
Insulation

Pairs: 2

Material: Foam PE

Colour: Red/Black

Min. Thickness 0.35mm / Nom. Thickness ≥0.5mm / Nom. O.D 1.73+/-0.1mm
Screen Al. Foil 100% Coverage
Drain Wire

7/0.203+/-0.006TC
Sheath Material: PVC / Colour: Violet
Min. Thickness 0.32mm / Nom. Thickness ≥0.5mm / Nom. Sheath O.D H: 4.6+/-0.2mm, W: 10.6+/-0.3mm
Spark Voltage : 3000V a.c

Electrical Properties

Rated Voltage 300V
Conductor Max D.C Resistance 89ohm/km 20°C
Characteristic Impedance 110 ohm
Nom. Mutual Capacitance 50pF/m (1KHz)
Voltage Test: Core to Core 1.5kV dc/1min
Voltage Test: Core to Screen 1.5kV dc/1min

Physical Properties

Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2

Mechanical Properties

Operating Temperature Range -20 to 75
Max. Recommended Pulling Tension 95N
Min. Bend Radius (install) 46mm
Approximate Mass 4.7kg/100m
Sheath Printing TBA
