Roadworx RW120424 Digial Audio Cable AES - EBU 4-Pair Foil Screened Individually Jacketed 24AWG Violet - 300m Reel

Product Code: RW120424VI300

Key Features

Digial Audio Cable AES - EBU 4-Pair Foil Screened Individually Jacketed 24AWG Violet

$8.64 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

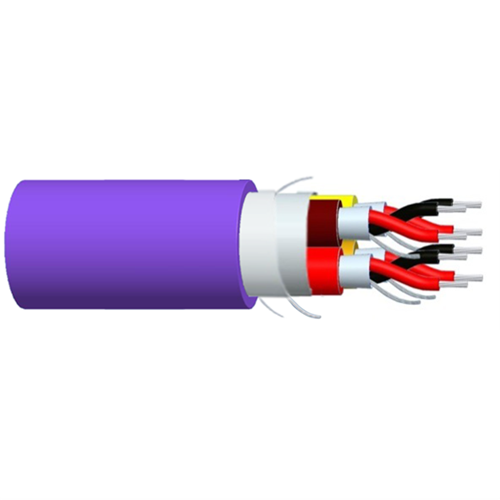

Roadworx RW120424 Digial Audio Cable AES - EBU 4-Pair Foil Screened Individually Jacketed 24AWG Violet

Description

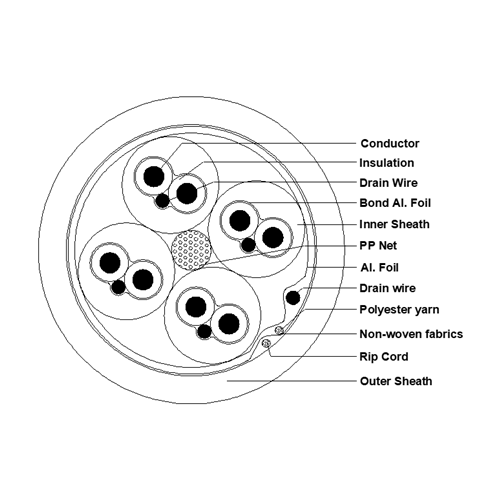

(7/0.203TC x 1P + Foam PE Insulation + Drain Wire + Bonded Al. Foil + PVC Inner Sheath) x 4C + PP Net + Al. Foil + Drain Wire + Polyester yarn + Non-woven fabrics + Rip Cord + PVC Outer Sheath O.D 12.8mm

Applicable Standards

Reference to Belden 1803F

Suitable Applications

Used extensively for Audio systems.
*Not intended for direct connection to mains power.

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Cable Description

Conductor 7/0.203+/-0.006TC
Insulation

Pairs: 4

Material: Foam PE

Colour: Red/Black

Min. Thickness 0.35mm / Nom. Thickness ≥0.5mm / Nom. O.D 1.73+/-0.1mm
Screen Bonded Al. Foil 100% Coverage
Drain Wire

7/0.203+/-0.006TC
Inner Sheath Material: PVC / Colour: Brown and Numbered 1, Red and Numbered 2, Orange and Numbered 3, Yellow and Numbered 4
Min. Thickness 0.24mm / Nom. Thickness ≥0.4mm / Nom. Sheath O.D 4.4+/-0.2mm
Spark Voltage : 3000V a.c
Filler Material: PP Net
Overall Screen Al. Foil Coverage 100%
Drain Wire 19/0.3+/-0.006TC
Filler Material : Polyester yarn
Material : Non-woven fabrics
Material : Rip Cord
Outer Sheath Material: PVC / Colour: Violet
Min. Thickness 0.66mm / Nom. Thickness ≥0.9mm / Nom. Sheath O.D 12.8+/-0.3mm
Spark Voltage: 3000V a.c

Electrical Properties

Rated Voltage 300V
Conductor Max D.C Resistance 89ohm/km 20°C
Characteristic Impedance 110 ohm
Nom. Mutual Capacitance 50pF/m (1KHz)
Voltage Test: Core to Core 1.5kV dc/1min
Voltage Test: Core to Screen 1.5kV dc/1min

Physical Properties

Inner Sheath Elongation ≥100%
Inner Sheath Tensile Strength ≥12 N/mm2
Outer Sheath Elongation ≥100%
Outer Sheath Tensile Strength ≥12N/mm2

Mechanical Properties

Operating Temperature Range -20 to 75
Max. Recommended Pulling Tension 285N
Min. Bend Radius (install) 128mm
Approximate Mass 17.5kg/100m
Sheath Printing TBA
