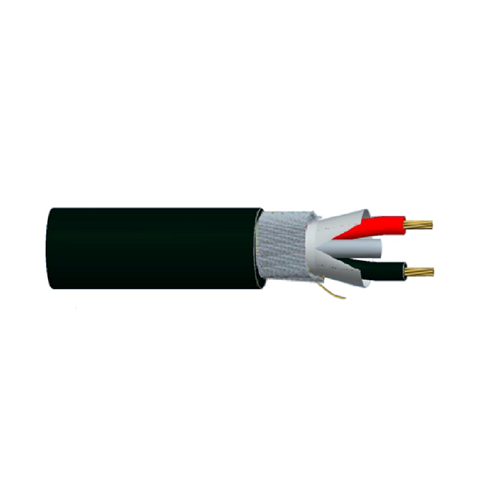

Digital Audio Cable 110 Ohm AES - EBU 1-Pair Braid Screened 24AWG Black
42/0.08BC x 1P + Foam PE Insulation + Cotton Yarn + Cotton Tape + Drain Wire + 64/0.1TC Left Spiral Shield + 64/0.1TC Right Spiral Shield + PVC Sheath O.D 5.4mm.
Suitable Applications
Used extensively for Audio systems.
*Not intended for direct connection to mains power.
We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.
Conductor
42/0.08+/-0.006BC
Insulation
Pairs: 1
Material: Foam PE
Colour: Red/Black
Min. Thickness 0.35mm / Nom. Thickness ≥0.5mm / Nom. O.D 1.6+/-0.1mm
Filler
Material: Cotton Yarn
Material: Cotton Tape
Drain Wire
30/0.08+/-0.006BC
Shielding
64/0.1+/-0.006mmTC Left Spiral Shield
64/0.1+/-0.006mmTC Right Spiral Shield
Sheath
Material: PVC / Colour: Black
Min. Thickness 0.66mm / Nom. Thickness ≥0.9mm / Nom. Sheath O.D 5.4+/-0.2mm
Spark Voltage: 3000V a.c
Rated Voltage
300V
Conductor Max D.C Resistance
95.5ohm/km 20°C
Nom. Characteristic Impedance
110ohm
Nom. Capac. Conductor to Cond.
50pF/m (1KHz)
Voltage Test: Core to Core
1.5kV dc/1min
Voltage Test: Core to Shield
Nom. Attenuation (dB/100m)
(MHz)
1.024
1.411
1.536
2.048
2.8224
3.072
4.096
(dB)
2.231
2.92
3.117
3.937
4.922
5.25
6.89
5.645
6.144
8.192
11.29
12.288
24.576
-
9.187
9.843
11.812
14.765
15.421
23.295
Sheath Elongation
≥100%
Sheath Tensile Strength
≥12N/mm2
Operating Temperature Range
-20 to 75
Max. Recommended Pulling Tension
111N
Min. Bend Radius (install)
54mm
Approximate Mass
4.5kg/100m
