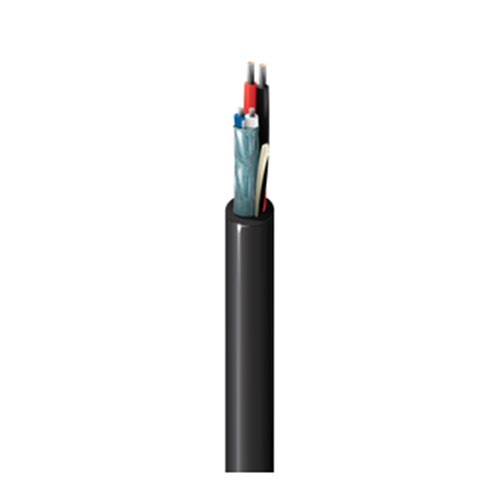

Belden Multi-Conductor - Multimedia Control Cable 1 Pair x 22AWG and 1 Pair x 18AWG Black - 305m Reel

Product Code: 1502R 0101000

Key Features
22 AWG stranded (7x30) TC conductors, FPE insulation (data), STP (Data) w/Beldfoil®, TC drain wire, 18 AWG (16x30) TC conductors, unshielded (power) pair, F-R PVC insulation (power), F-R PVC Jacket (Available in Black, White, or Aqua)
$4.48 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents
22 AWG stranded (7x30) TC conductors, FPE insulation (data), STP (Data) w/Beldfoil®, TC drain wire, 18 AWG (16x30) TC conductors, unshielded (power) pair, F-R PVC insulation (power), F-R PVC Jacket (Available in Black, White, or Aqua)

Please call Madison for Project Quotations on Belden Products, or for pricing on any unlisted Belden products

Warranty

We offer a 10 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Physical Characteristics (Overall)
# Conductors2
# Pairs1
AWG22
Stranding7x30
Conductor MaterialTC - Tinned Copper
Total Number of Conductors:4
Insulation Trade NameDatalene
Insulation MaterialHDFPE - High Density Foam Polyethylene
Wall Thickness (mm)0.635
Layer #22 AWG Pair
Inner Shield Trade NameBeldfoil
TypeTape
Inner Shield MaterialAluminum Foil-Polyester Tape
Coverage (%)100
Stranding
Dia. (mm)
Conductor Material
AWG24 AWG
Stranding7x32
Outer Shield MaterialUnshielded
Outer Jacket MaterialF-R PVC - Flame Retardant Polyvinyl Chloride
Outer Jacket Ripcord:Yes
Overall Nominal Diametre:6.350 mm
Number1
ColorBlue & White
Mechanical Characteristics (Overall)
Operating Temperature Range:-20°C To +75°C
Non-UL Temperature Rating:75°C
Bulk Cable Weight:59.528 Kg/Km
Max. Recommended Pulling Tension:266.002 N
Min. Bend Radius/Minor Axis:63.500 mm
Applicable Specifications and Agency Compliance (Overall)
NEC/(UL) Specification:CMR
CEC/C(UL) Specification:CMG
EU Directive 2011/65/EU (ROHS II):Yes
EU CE Mark:Yes
EU Directive 2000/53/EC (ELV):Yes
EU Directive 2002/95/EC (RoHS):Yes
EU RoHS Compliance Date (mm/dd/yyyy):04/01/2005
EU Directive 2002/96/EC (WEEE):Yes
EU Directive 2003/11/EC (BFR):Yes
CA Prop 65 (CJ for Wire & Cable):Yes
MII Order #39 (China RoHS):Yes
UL Flame Test:UL1666 Vertical Shaft
CSA Flame Test:FT4
Plenum (Y/N):No
Plenum Number:1502P
Notes (Overall)
Notes:Sequential footage marking every two feet.
