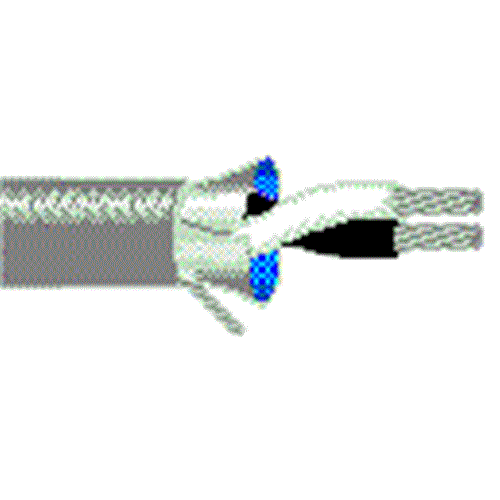

18 AWG stranded (16x30) tinned copper conductors, polyethylene insulation, twisted pair, overall Beldfoil® shield (100% coverage), 20 AWG stranded tinned copper drain wire, PVC jacket.
Please call Madison for Project Quotations on Belden Products, or for pricing on any unlisted Belden products
We offer a 10 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.
Physical Characteristics (Overall)
Conductor
AWG:
# Pairs
AWG
Stranding
Conductor Material
1
18
16x30
TC - Tinned Copper
Total Number of Conductors: 2
Insulation
Insulation Material:
Insulation Material
Wall Thickness (in.)
PO - Polyolefin
0.018
Outer Shield
Outer Shield Material:
Outer Shield Trade Name
Type
Outer Shield Material
Coverage (%)
Beldfoil®
Tape
Aluminum Foil-Polyester Tape w/Shorting Fold
100
Outer Shield Drain Wire AWG:
Drain Wire Conductor Material
20
7x28
Outer Jacket
Outer Jacket Material:
Outer Jacket Material
Nom. Wall Thickness (in.)
PVC - Polyvinyl Chloride
0.028
Overall Cable
Overall Nominal Diameter: 0.222 in.
Pair
Pair Color Code Chart:
Number
Color
Black & Clear
Mechanical Characteristics (Overall)
Operating Temperature Range:
-20°C To +60°C
Bulk Cable Weight:
25 lbs/1000 ft.
Max. Recommended Pulling Tension:
54 lbs.
Min. Bend Radius/Minor Axis:
2.250 in.
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
NEC/(UL) Specification:
CM
CEC/C(UL) Specification:
AWM Specification:
UL Style 2092 (300 V 60°C)
EU Directive 2011/65/EU (ROHS II):
Yes
EU CE Mark:
EU Directive 2000/53/EC (ELV):
EU Directive 2002/95/EC (RoHS):
EU RoHS Compliance Date (mm/dd/yyyy):
01/01/2004
EU Directive 2002/96/EC (WEEE):
EU Directive 2003/11/EC (BFR):
CA Prop 65 (CJ for Wire & Cable):
MII Order #39 (China RoHS):
Flame Test
UL Flame Test:
UL1685 UL Loading
Suitability
Suitability - Indoor:
Plenum/Non-Plenum
Plenum (Y/N):
No
Plenum Number:
88760, 87760 or 82760
Electrical Characteristics (Overall)
Nom. Inductance:
Inductance (µH/ft)
.18
Nom. Capacitance Conductor to Conductor:
Capacitance (pF/ft)
27.200
Nom. Conductor DC Resistance:
DCR @ 20°C (Ohm/1000 ft)
6.5
Max. Operating Voltage - UL:
Voltage
300 V RMS
Max. Recommended Current:
Current
7.2 Amps per conductor @ 25°C
