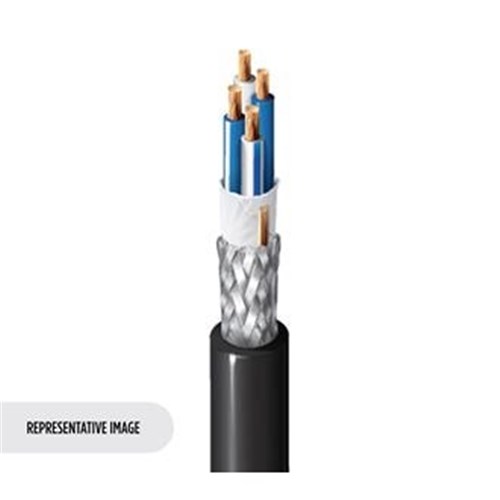

Belden Multi-Conductor - Four-Conductor Star Quad Low-Impedance Mic Cable 26AWG Black - 305m Reel

Product Code: 1172A B591000

Key Features
26 AWG stranded (30x40) high-conductivity BC conductors, polyethylene insulation, tinned copper "French Braid" shield (95% coverage), BC drain wire, PVC jacket.
$4.62 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents
26 AWG stranded (30x40) high-conductivity BC conductors, polyethylene insulation, tinned copper "French Braid" shield (95% coverage), BC drain wire, PVC jacket.

Please call Madison for Project Quotations on Belden Products, or for pricing on any unlisted Belden products

Warranty

We offer a 10 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Physical Characteristics (Overall)
# Conductors4
AWG26
Stranding30x40
Conductor MaterialSBC - Soft Bare Copper
Dia. (mm)0.5334
Total Number of Conductors:4
Insulation MaterialPE - Polyethylene
Dia. (mm)1.143
TypeFrench Braid
Outer Shield MaterialTC - Tinned Copper
Coverage (%)95
AWG28
StrandingStranded
Drain Wire Conductor MaterialBC - Bare Copper
Outer Jacket MaterialPVC - Polyvinyl Chloride
Number1
ColorBlue
Overall Nominal Diametre:4.826 mm
Mechanical Characteristics (Overall)
Operating Temperature Range:-20°C To +60°C
Non-UL Temperature Rating:60°C
Bulk Cable Weight:37.205 Kg/Km
Max. Recommended Pulling Tension:164.583 N
Min. Bend Radius/Minor Axis:50.800 mm
Applicable Specifications and Agency Compliance (Overall)
EU Directive 2011/65/EU (ROHS II):Yes
EU CE Mark:No
EU Directive 2000/53/EC (ELV):Yes
EU Directive 2002/95/EC (RoHS):Yes
EU RoHS Compliance Date (mm/dd/yyyy):01/01/2004
EU Directive 2002/96/EC (WEEE):Yes
EU Directive 2003/11/EC (BFR):Yes
CA Prop 65 (CJ for Wire & Cable):Yes
MII Order #39 (China RoHS):Yes
Plenum (Y/N):No
Electrical Characteristics (Overall)
Other Electrical Characteristic 1:2/c 23 AWG equivalent DCR when connected to a 3-pin XLR
Notes (Overall)
Notes:Quad connection scheme: The two blue wires (or wires directly opposite one another) are connected together to form one conductor, and similarly the two white wires (or remaining wires) are connected together to form the second conductor.
