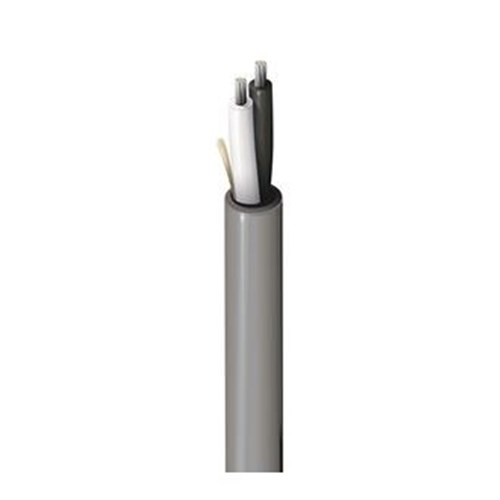

Belden Speaker Cable - 2 Conductor 10AWG FRPVC Unshielded Black - 305m Reel

Product Code: 5T00UP 0101000

Key Features
  • Commercial Audio Cable
  • Rated-CL2
  • 2-10 AWG highly flexible stranded bare copper conductors with PVC insulation, PVC jacket with ripcord.
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

Belden Audio Cable - 2 Conductor 10AWG BC Unshielded Black - 305m Reel

Suitable applications for this cable include:

  • Security System,
  • Intercom/PA,
  • Audio/Speaker,
  • Power-Limited Controls

Please call Madison for Project Quotations on Belden Products, or for pricing on any unlisted Belden products

Warranty

We offer a 10 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.

Construction Details

CONDUCTOR
Element Conductor(s)
Number of Element 2
Size 10 AWG
Stranding 65x28
Material BC - Bare Copper
INSULATION
Element Conductor(s)
Material PVC - Polyvinyl Chloride
Nom. Thickness 0.020 in (0.51 mm)
Color Code Black, White
OUTER JACKET
Material PVC - Polyvinyl Chloride
Nom. Thickness 0.026 in (0.66 mm)
Nom. Diameter 0.356 in (9.04 mm)
Ripcord Yes
Overall Cable Diameter (Nominal) 0.356 in (9.04 mm)

Electrical Characteristics

ELECTRICALS
Element Conductor(s)
Nom. Conductor DCR 1.03 Ohm/1000ft (3.38 Ohm/km)
Nom. Capacitance Cond-to-Cond 26 pF/ft (85 pF/m)
Max. Current 27.8 Amps per conductor @ 25°C

Mechanical Characteristics

TEMPERATURE
UL Temperature 75°C
Operating -20°C to +75°C
BEND RADIUS
Stationary Min. 3.6 in (91 mm)
Installation Min. 3.6 in (91 mm)
Max. Pull Tension 260 lbs (120 kg)
Bulk Cable Weight 91 lbs/1000ft (140 kg/km)

Standards and Compliance

Environmental Suitability Indoor (Not Riser or Plenum), Indoor
Flammability / Reaction to Fire UL1685 (UL Loading), IEC 60332-1-2
CPR Compliance CPR Euroclass: Eca
NEC / UL Compliance Article 725, CL2
European Directive Compliance EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance UKCA Mark
APAC Compliance China RoHS II (GB/T 26572-2011)
Plenum Number 6T00UP
