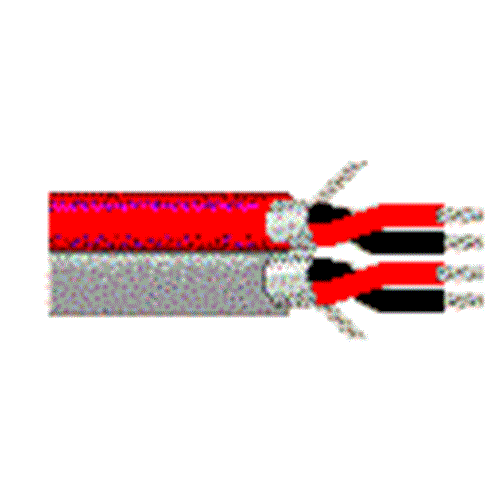

Belden Multi-Conductor - Double-Pair Analog Audio Cable Balanced Figure 8 Style Red/Grey - 305m Reel

Product Code: 1504A 053U1000

Key Features
22 AWG stranded (19x34) TC conductors, PVC insulation, dual twisted pairs, overall Beldfoil® shield (100% coverage), 24 AWG stranded TC drain wire, PVC jacket in zip-cord construction.
$5.19 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents
22 AWG stranded (19x34) TC conductors, PVC insulation, dual twisted pairs, overall Beldfoil® shield (100% coverage), 24 AWG stranded TC drain wire, PVC jacket in zip-cord construction.

Please call Madison for Project Quotations on Belden Products, or for pricing on any unlisted Belden products

Warranty

We offer a 10 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Physical Characteristics (Overall)
# Pairs2
AWG22
Stranding19x34
Conductor MaterialTC - Tinned Copper
Total Number of Conductors:4
Insulation MaterialPVC - Polyvinyl Chloride
Wall Thickness (mm)0.254
Outer Shield Trade NameBeldfoil
TypeTape
Outer Shield MaterialAluminum Foil-Polyester Tape
Coverage (%)100
AWG24
Stranding7x30
Drain Wire Conductor MaterialTC - Tinned Copper
Outer Jacket MaterialPVC - Polyvinyl Chloride
Overall Nominal Diametre:3.632 x 7.264 mm
Number1
ColorBlack & Red
Mechanical Characteristics (Overall)
Operating Temperature Range:-30°C To +60°C
UL Temperature Rating:60°C
Bulk Cable Weight:44.646 Kg/Km
Max. Recommended Pulling Tension:111.205 N
Min. Bend Radius/Minor Axis:38.100 mm
Applicable Specifications and Agency Compliance (Overall)
NEC/(UL) Specification:CM
CEC/C(UL) Specification:CM
EU Directive 2011/65/EU (ROHS II):Yes
EU CE Mark:Yes
EU Directive 2000/53/EC (ELV):Yes
EU Directive 2002/95/EC (RoHS):Yes
EU RoHS Compliance Date (mm/dd/yyyy):10/01/2005
EU Directive 2002/96/EC (WEEE):Yes
EU Directive 2003/11/EC (BFR):Yes
CA Prop 65 (CJ for Wire & Cable):Yes
MII Order #39 (China RoHS):Yes
UL Flame Test:UL1685 UL Loading
Plenum (Y/N):No
Notes (Overall)
Notes:The jacket and shield are bonded so both can be removed on automatic stripping equipment. Drain wire is inside foil shield.
