JBL CTRL52-WH Surface-Mount Satellite Speaker for Subwoofer-Satellite Loudspeaker System White - Priced as Each Sold as Pair

Product Code: JBL CTRL52-WH

Key Features
JBL CTRL52-WH Control 52C Satellite, Satellite Speaker, 60 Mm (2.5 In) Low-Distortion Driver, For Use With C50S/T Or C50Cs/T Subwoofer Or Requires External High-Pass, 16 Ohms, Wall-Mount Bracket Included , White. (Priced As Each, Sold In Pairs)
$247.50 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

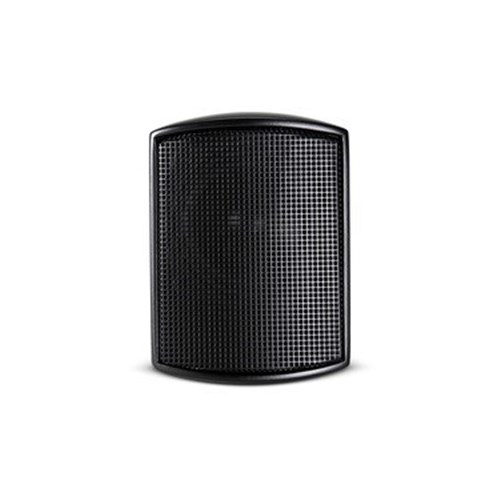

Surface-Mount Satellite Speaker for Subwoofer-Satellite Loudspeaker System

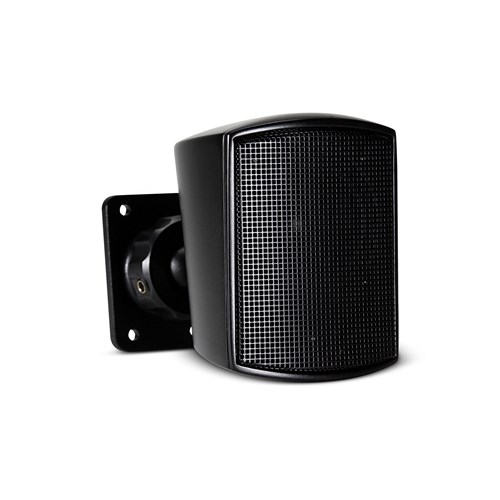

The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex® former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis.

For full-range wide-bandwidth performance, either 2 or 4 Control 52P mid-high speakers can be driven from the Control 50S/T pendant subwoofer (or from a Control 60PS/T pendant or Control 40CS/T in-ceiling subwoofer). The crossover for this subwoofer-satellite system is included in the subwoofer, and the system can be driven either low-impedance or from a 70V/100V distributed speaker line.

Features

  • Stylish, unobtrusive design fits into a wide variety of decors
  • Ability to intermix with Control 42C in-ceiling and Control 62P pendant satellite speakers
  • 16 ohms impedance
  • Wall-mount brackets included
  • Available in black or white




Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10dB) 140 Hz – 20 kHz
Frequency Response (±3 dB) 180 Hz – 17 kHz
Power Rating 50 Watts Continuous Program Power (2 hrs)
25 Watts Continuous Pink Noise (2 hrs)30 Watts Continuous Program Power (100 hrs)15 Watts Continuous Pink Noise (100 hrs)
Sensitivity 85 dB (4.0V/1m = 1W), 82 dB (2.83V, 1m)
Coverage Angle 150° x 150° (omnidirectional)
Maximum SPL (1m) 94 dB average, 100 dB peak
Impedance 16 ohms
Drivers 60 mm (2.5 in) with polypropylene cone, butyl rubber surround, 19 mm (0.75 in) copper-clad coil, vented Nomex® former, secondary bucking magnet, and copper sleeved pole piece for high frequency extension.
Input Connectors Removable locking 2-pin connector with screw-down terminals. Max wire 12 AWG (2.5 mm2)
Enclosure High impact polystyrene, painted zinc-plated metal grille.
Dimensions (H x W x D) Cabinet: 115 x 84 x 96 mm (4.5 x 3.3 x 3.75 in)Wall bracket: 51 mm (2.0 in)
Net Weight (each) 0.7 kg (1.5 lbs)
Shipping Weight 0.8 kg (1.8 lbs)
Included Accessories Wall bracket (both speaker and wall parts), 2-pin locking connector.
Grille Zinc-plated steel
Mounting Hardware Included wall swivel ball bracket
Optional Accessories Wall-mount ball-type bracket
