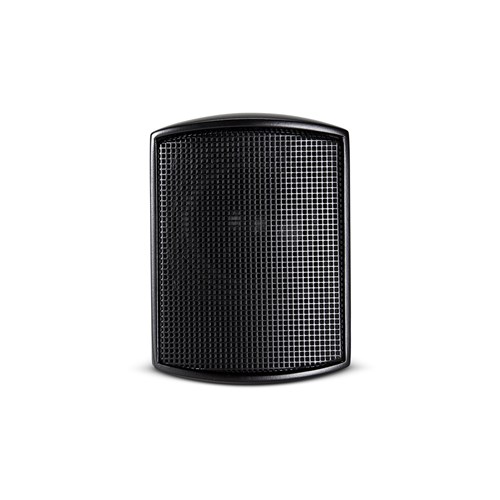

JBL Control 52 - Surface-Mount Satellite Speaker for Subwoofer-Satellite Loudspeaker System Black - Priced as Each Sold as Pair

Product Code: JBL CTRL52-BK

Key Features
Satellite Speaker, 60 mm (2.5 in) low-distortion driver, for use with C50S/T or C50CS/T subwoofer or requires external high-pass, 16 ohms, wall-mount bracket included (priced as each, sold in pairs), black.
$247.50 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

Surface-Mount Satellite Speaker for Subwoofer-Satellite Loudspeaker System

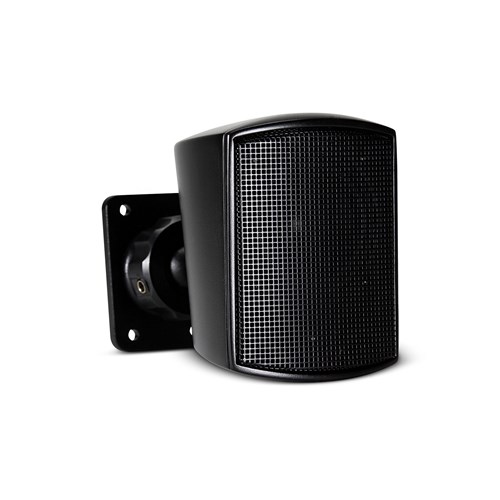

The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex® former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis.

For full-range wide-bandwidth performance, either 2 or 4 Control 52P mid-high speakers can be driven from the Control 50S/T pendant subwoofer (or from a Control 60PS/T pendant or Control 40CS/T in-ceiling subwoofer). The crossover for this subwoofer-satellite system is included in the subwoofer, and the system can be driven either low-impedance or from a 70V/100V distributed speaker line.

Features

  • Stylish, unobtrusive design fits into a wide variety of decors
  • Ability to intermix with Control 42C in-ceiling and Control 62P pendant satellite speakers
  • 16 ohms impedance
  • Wall-mount brackets included
  • Available in black or white

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10 dB) 140 Hz 20 kHz
Frequency Response ( 3 dB) 180 Hz 17 kHz
Power Capacity 50 Watts Continuous Program Power (2 hrs)25 Watts Continuous Pink Noise (2 hrs)30 Watts Continuous Program Power (100 hrs)15 Watts Continuous Pink Noise (100 hrs)
Nominal Sensitivity 85 dB (4.0V/1m = 1W)82 dB (2.83V, 1m)
Nominal Coverage Angle 150 x 150 (omnidirectional)
Rated Maximum SPL (1m) 94 dB average, 100 dB peak
Nominal Impedance 16 ohms
Transducer Driver 60 mm (2.5 in) with polypropylene cone, butyl rubber surround, 19 mm (0.75 in) copper-clad coil, vented Nomex former, secondary bucking magnet, and copper sleeved pole piece for high frequency extension.
Input Connector Removable locking 2-pin connector with screw-down terminals. Max wire 12 AWG (2.5 mm2)
Material High impact polystyrene, painted zinc-plated metal grille.
Dimensions (H x W x D) Cabinet: 115 x 84 x 96 mm (4.5 x 3.3 x 3.75 in)Wall bracket: 51 mm (2.0 in)
Net Weight 0.7 kg (1.5 lbs)
Shipping Weight 0.8 kg (1.8 lbs)
Included Accessories Wall bracket (both speaker and wall parts), 2-pin locking connector.
