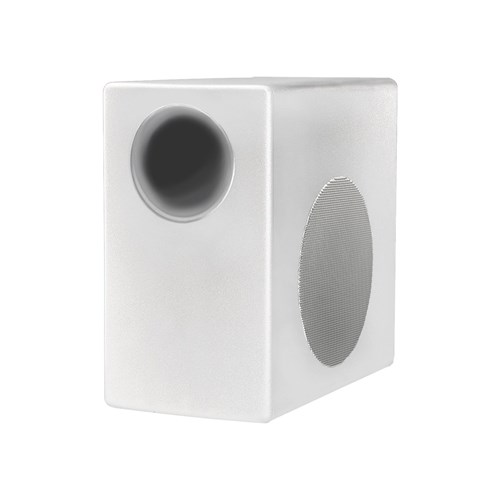

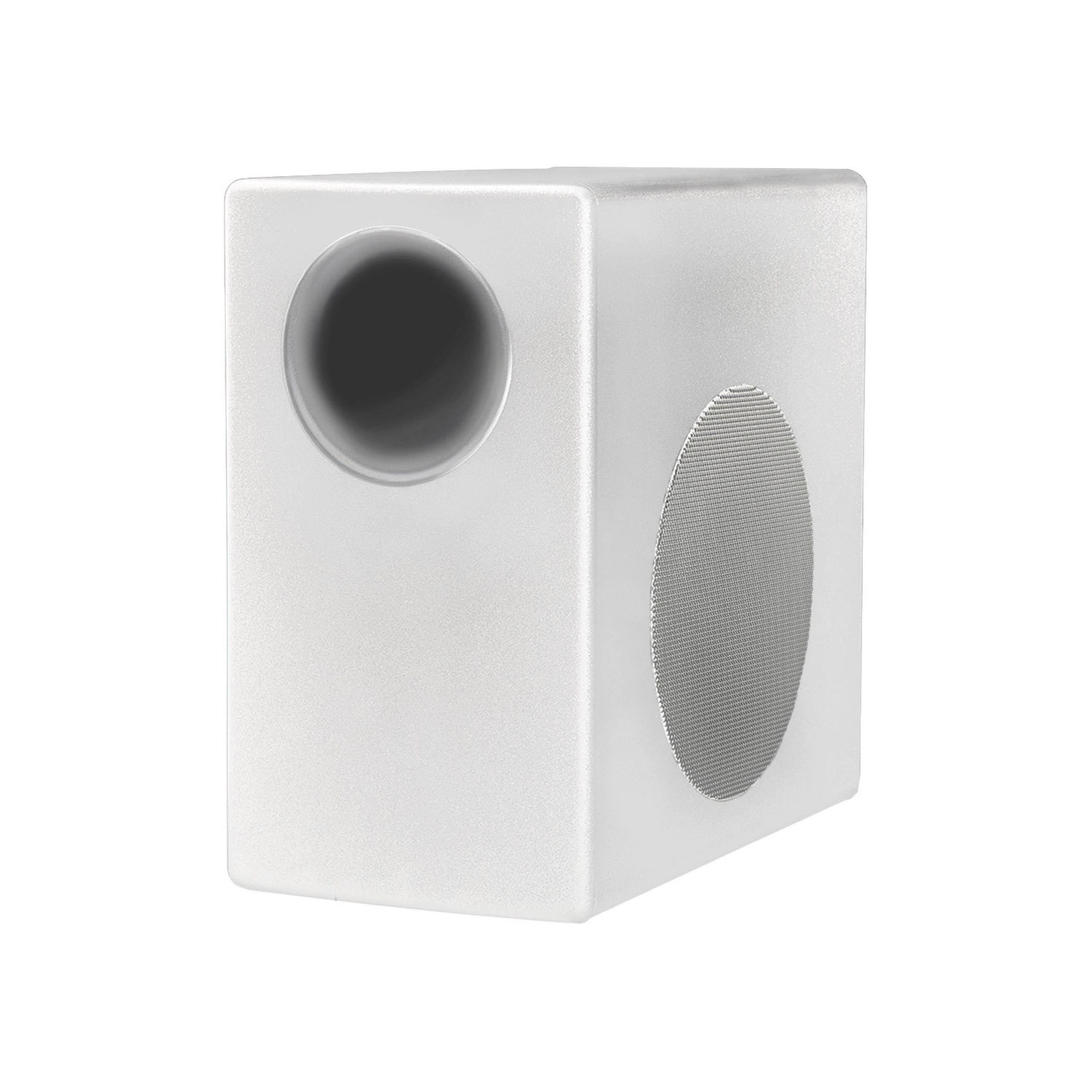

JBL Control 50S/T - Surface-Mount Subwoofer for Subwoofer-Satellite Loudspeaker System White - Priced as Each Sold as Pair

Product Code: JBL CTRL50ST-WH

Key Features
Compact surfact-mount subwoofer with built-in crossover. 200 mm (8 in) long-throw woofer, 100W cont pink noise (400W peak), selectable 70V/100V or low-impedance, drives 2 or 4 satellite speakers (C42C, C52 or C62P), wall-mount bracket included, (priced as each; sold in pairs), white.
$1,385.20 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 6-8 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Surface-Mount Subwoofer for Subwoofer-Satellite Loudspeaker System

The 150 Watt (600 Watt peak) Control 50S/T subwoofer contains a high-power, long-excursion, 200 mm (8 inch) driver which features an extremely robust high-mass cone for extended low frequency response, a 38 mm (1.5 in) 4-layer copper voice coil for high motor strength, an aluminum former for good transient response, and a rubber half roll surround for enhanced bass performance.

Features

  • Full bandwidth 32 Hz – 20 kHz high fidelity sound
  • Selectable 70V/100V for distributed lines, or low impedance
  • Versatility for either two or four satellite speakers per system
  • Available in black or white

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10 dB) 32 Hz 200 Hz
Frequency Response ( 3 dB) 50 Hz 150 Hz
Power Capacity 300 Watts Continuous Program Power (2 hrs)150 Watts Continuous Pink Noise (2 hrs)200 Watts Continuous Program Power (100 hrs)100 Watts Continuous Pink Noise (100 hrs)
Nominal Sensitivity (2.83V, 1m) 95 dB (near corner), 89 dB (center of wall)
Rated Maximum SPL (1m) 115 dB average, 121 dB peak (near corner)109 dB average, 115 dB peak (center of wall)
Nominal Impedance 8 ohms (in bypass/thru mode)
Transformer Taps 80W, 40W, 20W, (& 10W @ 70V), 8 ohm bypass/thru
Transducer Driver 200 mm (8 in) with polypropylene cone, butyl rubber surround, 38 mm (1.5 in) 4-layer copper-clad coil, vented aluminum former
Input Connectors Six removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm2)
Material Top, bottom, front & bottom: Structural plywood. Port & terminal panels: MDF. Grille: Painted zinc-plated metal.
Dimensions (H x W x D) Cabinet: 356 x 391 x 203 mm (14.0 x 15.4 x 8.0 in)Wall Bracket: 15 mm (0.6 in) deep
Wall Bracket 2.3 mm (0.9 in) thick zinc-plated and painted cold-rolled steel
Net Weight 9.0 kg (20 lbs)
Shipping Weight 10.2 kg (23 lbs)
Included Accessories Wall bracket (both speaker and wall parts) with 4 pcs M6 screws to attach to speaker, terminal cover, 6 pcs 2-pin locking connectors, M6 screw for safety lanyard attachment.
