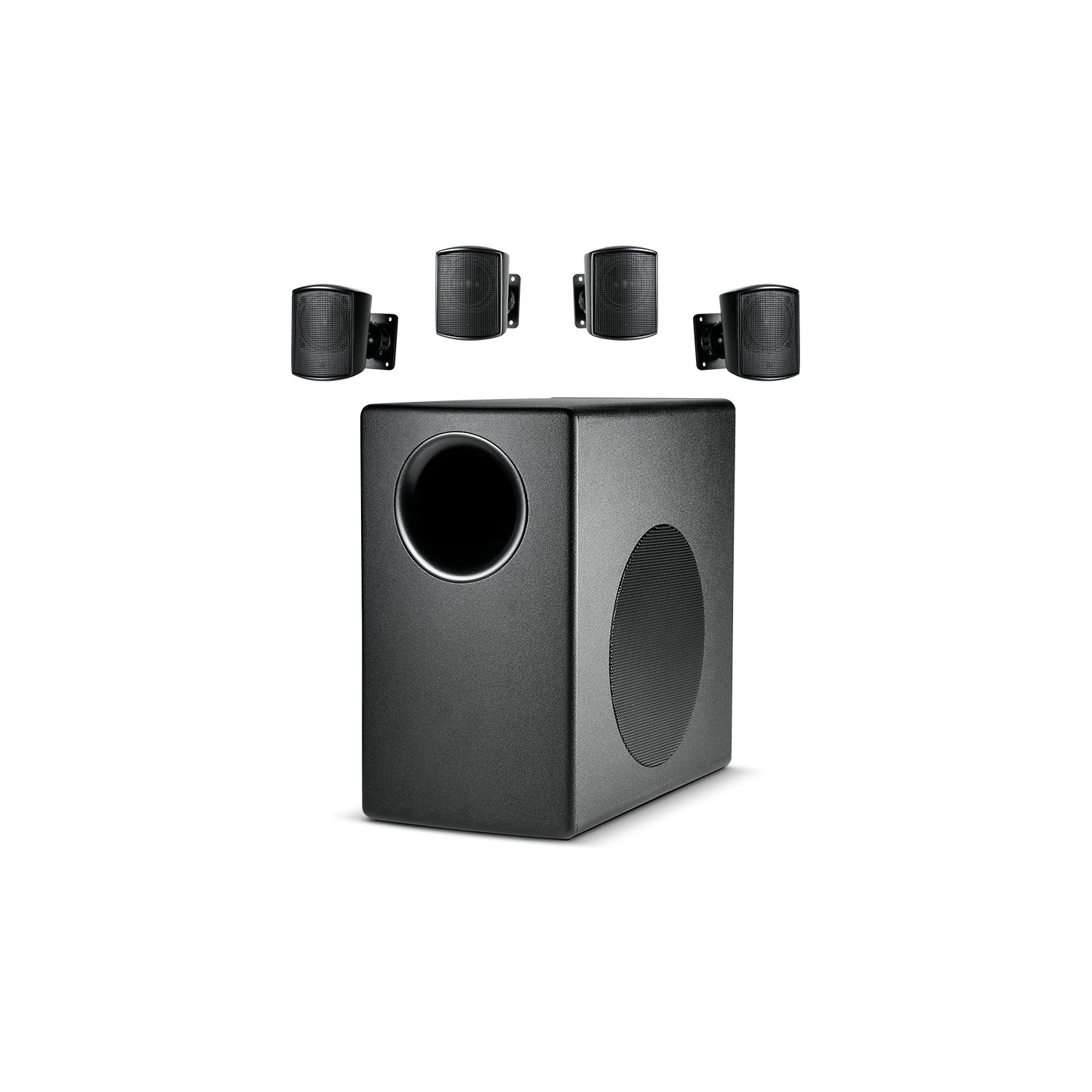

JBL C50PACK - Packaged Surface-Mount Subwoofer-Satellite Loudspeaker System Black

Product Code: JBL CTRL50PACK-BK

Key Features
  • Versatile loudspeaker system. Includes 1 x Control50 Subwoofer and 4 x Control 52 Satellite Speakers
  • Stylish, unobtrusive design ts into a wide variety of decor
  • High delity sound
  • Selectable 70V/100V for distributed lines, or low impedance
  • Wall-mount brackets include
  • Colour: Black
$2,253.32 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL C50PACK - Packaged Surface-Mount Subwoofer-Satellite Loudspeaker System Black

The Control 50 Series subwoofer-satellite loudspeaker system provides high delity sound in restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, or any location where full-range high delity foreground/background music is required from surfacemount system.

Control 52 Satellite Speaker:

The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a lowdistortion 60 mm (2½ in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex® former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis.

Control 50 Subwoofer:

The 150 Watt (600 Watt peak) Control 50S/T subwoofer contains a high-power, long-excursion, 200 mm (8 inch) driver which features an extremely robust high-mass cone for extended low frequency response, a 38 mm (1.5 in) 4-layer copper voice coil for high motor strength, an aluminum former for good transient response, and a rubber half roll surround for enhanced bass performance. The Control 50S/T’s included two-piece easy-mount wall-bracket installs quickly: The multi-point wall portion of the bracket attached to the wall and the self-guiding speaker-mounted bracket drops into place for a secure attachment. A cover over the Control 50S/T terminal cup keeps wiring neat. The Control 50S/T is mono. The crossover network built into the subwoofer provides proper signal routing and four satellite output connectors allow connection of the wires for the four Control 52 satellite loudspeakers. A Loop Out connector is also provided on the subwoofer for looping the full-range input signal to other loudspeakers or to other subwoofer/satellite  systems.

System Configuration:

Available as packaged system or as separate items, the Control 50 Series is extremely versatile system. The C50PACK system contains four Control 52 satellite speakers and one Control 50S/T subwoofer as an easy predesigned system. For smaller floor spaces, the Control 50S/T subwoofer can be utilized with two Control 52 satellite speakers. The Control 50 system is mono. Both the Control 50S/T and Control 52 can be intermixed in systems along with the Control 40 Series in-ceiling models – Control 40CS/T subwoofer and Control 42 satellite speaker – to match the form factor requirements of a wide variety of applications.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10dB) 32 Hz – 20 kHz
Frequency Response (±3 dB) 50 Hz – 17 kHz
Power Rating 200 Watts Continuous Program Power (100 hrs)
100 Watts Continuous Pink Noise (100 hrs)
Sensitivity System: 87 dB with 4 satellites
85 dB with 2 satellites
(depends on subwoofer boundary loading, see application note)
Impedance 4 ohms with 4 satellites, 8 ohms with 2 satellites
Transformer Taps 80W, 40W, 20W, (& 10W @ 70V), plus bypass/thru (listed as 8 ohms on switch to indicate subwoofer impedance
Maximum SPL (1m) System: 107 dB with 4 satellites, continuous (113 dB peak)
105 dB with 2 satellites, continuous (111 dB peak)
(depends on subwoofer boundary loading, see application note)
Input Connectors Removable locking 2-pin connectors with screw-down terminals.
Grille Zinc-plated steel
Mounting Hardware C50S/T: 2-part flush wall-mount bracket included.
C52: Wall swivel ball bracket included
Included Accessories See Control 50S/T & Control 52
