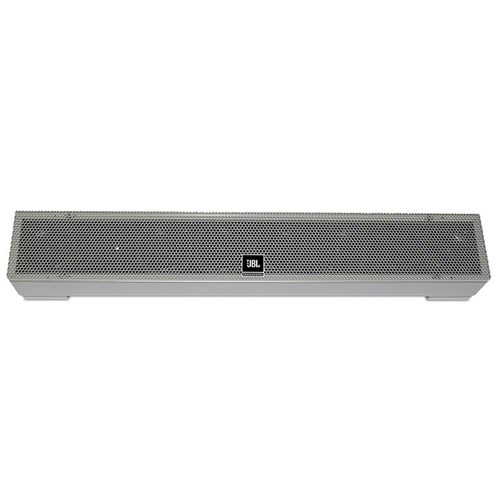

JBL IVX-577136 - Intellivox H-90 MKII Special Color - EN54:24

Product Code: JBL IVX-577136

Key Features
Intellivox H-90 MKII, Special Color] - EN54:24
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

The JBL Intellivox ADC-H90 Mark II is designed for use on platforms and in high ceiling corridors, to minimize spill over a large bandwidth outside the listening area. The precisely defined horizontal dispersion aims the acoustic signal at the listener area, whilst minimizing disturbance outside of this locality.
This dramatically improves the listening comfort in surrounding areas of for instance, open platform railway stations.

The column is designed to be mounted horizontally and can be mechanically aimed according to desired throw.
The Intellivox ADC-H90 Mark II is designed to evenly cover distances up to 10-15 m. It has a fixed vertical dispersion of 130º and a horizontal opening angle of 30º. The focus point for the horizontal beam is at 15m.

Applications

  • Railway Station Platforms
  • Long, high ceiling corridors
  • Terminals
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range 260 - 11k Hz (+/-3dB) 150 - 14k Hz (-10 dB)
Sensitivity (1 W / 4 m) 79 dBSPL
Maximum SPL (100 W / 4 m) 99 dBSPL
Coverage - Horizontal 40 (-6 dB)
Coverage - Vertical 130 (-6 dB)
Coverage - Steering Angle Horizontal 0
Coverage - Typical Throw 15 m
Rated Impedence (100 W tap) 100
Rated Impedence (50 W tap) 200
Rated Impedence (25 W tap) 400
Rated Noise Power 100 Wrms(100 W tap)
Rated Noise Voltage 100 Vrms
Control switches (Tap setting) 100 W / 50 W / 25 W
Control switches (Highpass filter) HPF active / Flat
Control switches (Correction EQ) EQ active / Flat
Pilot tone detection (Indicator) Green LED on front
Pilot tone detection (Frequency range) 20k - 23k Hz
Pilot tone detection (Minimum level) 6 Vrms
Suggested amplifiers JBL 100 V IndustryAmp series
Material Steel, powder coated
Mounting Points 4 x M5 left and 4 x M5 right
Dimension (H x W x D) 134 x 865 x 92 mm (5.3" x 34.1" x 3.6")
Standard Colours (Enclosure and grill) RAL 9007 (grey) or RAL 9010 (white)
Standard Colours (Speaker baffle) RAL 9011 (black)
Weight 10 kg (22 lbs)
