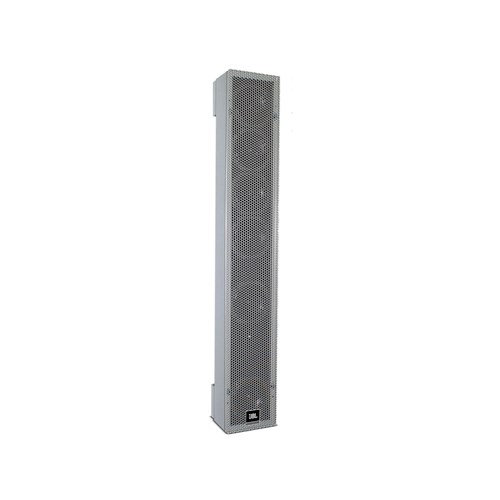

JBL IVX-577125 - Intellivox V-90 MKII Ral 9010 - EN54:24

Product Code: JBL IVX-577125

Key Features
Intellivox V-90 MKII, Ral 9010 - EN54:24
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

To improve intelligibility, the Model V90, utilises a preset vertical opening angle with a -4º steering angle to accurately cover the listening plane when mounted flat to a vertical surface. This results in a reduction of incoherent reflections from the mounting surface.

An additional advantage of vertical or even recessed mounting is that the Model V90 becomes architecturally unobtrusive.

Applications

  • Transport Hubs
  • Places of Worship
  • Atriums
  • Shopping Centers
  • Any reverberant space where high quality speech reproduction is required
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range 220 - 10k Hz (+/-3 dB) 120 - 12k Hz (-10 dB)
Sensitivity (1 W / 4 m) 80 dBSPL
Maximum SPL (100 W / 4 m) 100 dBSPL
Coverage - Horizontal 130 (-6 dB)
Coverage - Vertical 30 (-6 dB)
Coverage - Steering Angle Vertical -4
Coverage - Typical Throw 15 m
Rated Impedence (100 W tap) 100
Rated Impedence (50 W tap) 200
Rated Impedence (25 W tap) 400
Rated Noise Power 100 Wrms(100 W tap)
Rated Noise Voltage 100 Vrms
Control switches (Tap setting) 100 W / 50 W / 25 W
Control switches (Highpass filter) HPF active / Flat
Control switches (Correction EQ) EQ active / Flat
Pilot tone detection (Indicator) Green LED on front
Pilot tone detection (Frequency range) 20k - 23k Hz
Pilot tone detection (Minimum level) 6 Vrms
Suggested amplifiers JBL 100 V IndustryAmp series
Material Steel, powder coated
Mounting Points 4 x M5 left and 4 x M5 right
Dimension (H x W x D) 865 x 134 x 92 mm (34.1" x 5.3" x 3.6")
Standard Colours (Enclosure and grill) RAL 9007 (grey) or RAL 9010 (white)
Standard Colours (Speaker baffle) RAL 9011 (black)
Weight 10 kg (22 lbs)
