Icron Technologies USB 2.0 Ranger 2312 Dual Port Flexible Power CAT 5e/6/7 100m Extender

Product Code: IC 00-00409

Key Features
The USB 2.0 Ranger 2312 with flexible power extends high-speed USB 2.0 connections up to 100m using CAT 5e/6/7 with the option to power either the LEX (Local Extender) or REX (Remote Extender). This dual port USB 2.0 extender with flexible power is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device. Additionally, it is FCC/CE Class B certified.
$866.27 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Icron Technologies USB 2.0 Ranger 2312 Dual Port Flexible Power CAT 5e/6/7 100m Extender



The USB 2.0 Ranger 2312 allows users to extend USB 2.0/1.1 connections up to 330 ft (100m) over a single CAT 5e/6/7 cable.

This dual port USB 2.0 extender with flexible power provides installers the choice of applying power at either the LEX or REX, wherever most convenient. The Ranger 2312 is plug and play – no software drivers required – and works with all major operating systems: Windows, macOS™, and Linux

Additionally, this ExtremeUSB based extension system is FCC/CE Class B certified and ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.

Features

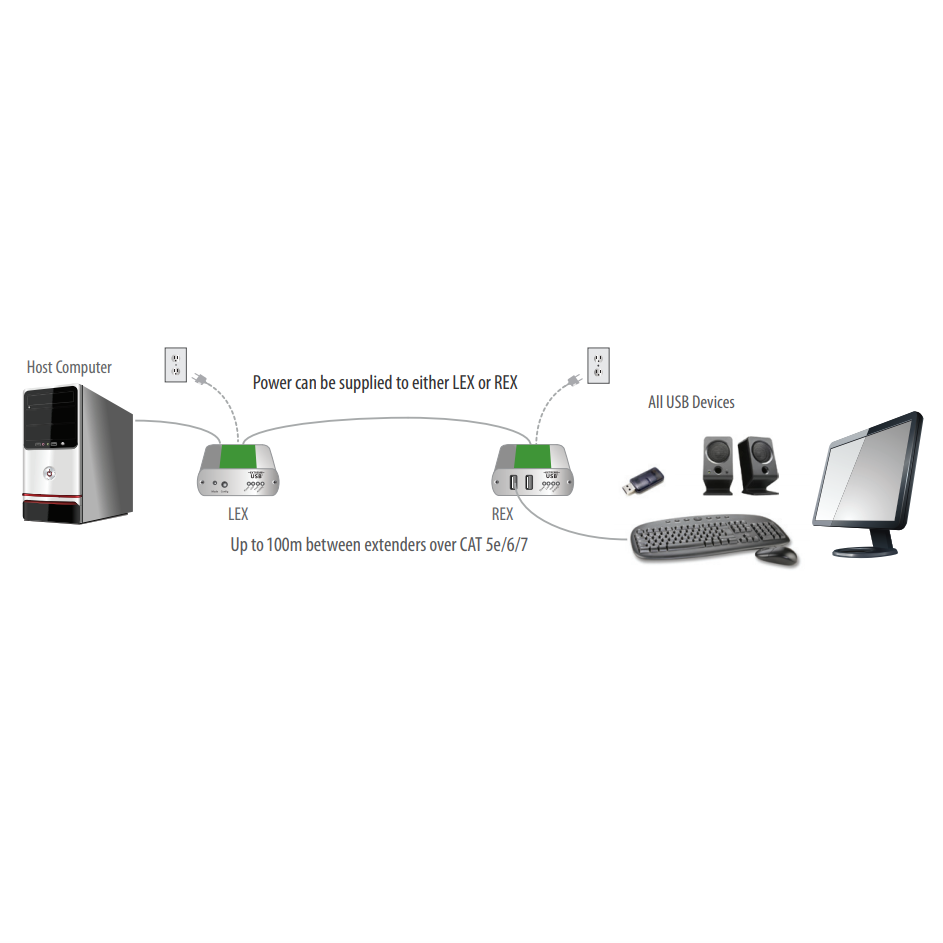

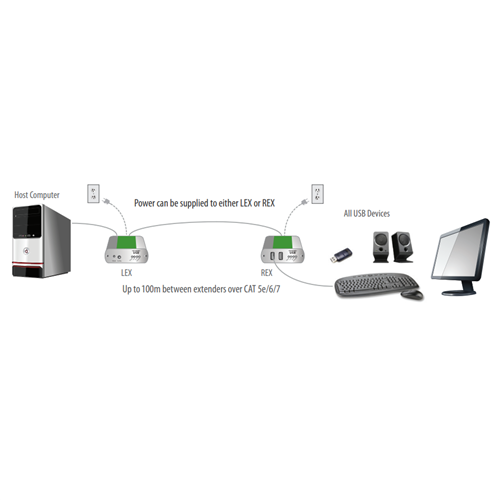

  • USB 2.0 extender with flexible power – connect the power adapter to either the LEX or REX
  • Supplies up to 1.5 Amps total when both USB ports are in use
  • Mass Storage Acceleration for USB 2.0 device bulk transfers
  • Supports all USB 2.0/1.1 devices up to 480 Mbps
  • Metal enclosures with FCC/CE Class B certification
  • Two year warranty
  • ExtremeUSB suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows, macOS™M, and Linux

Inclusions

The USB 2.0 Ranger 2312 system includes:

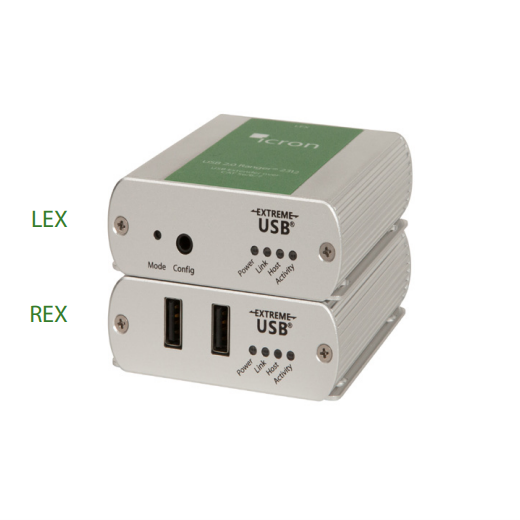

  • Local Extender (LEX)
  • Remote Extender (REX)
  • 2 metre USB cable
  • Quick Start Guide
  • International power adapter with country specific cord (North America, EU, UK, Australia/NZ, or Japan)
  • Two year warranty

Applications

  • Industrial Control
  • KVM Extension
  • Digital Signage
  • Medical Device Connectivity
  • Security: web camera, access control
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

RANGE:
Direct Connect: Up to 100m (330 ft) over solid core CAT 5e/6/7
USB DEVICE SUPPORT:
USB 2.0 Throughputs: Up to 480 Mbps
USB 1.1 Throughputs: Up to 12 Mbps
POWER:
Power Supply: 100-240V AC Input, 24V 1A DC Output
LEX (LOCAL EXTENDER):
USB Connector: 1 x USB Type B Receptacle
Link Connector: 1 x RJ45
Dimensions: 87.0mm x 75.0mm x 26.0mm (3.4" x 3.0" x 1.0")
Mounting: Slots for Cable Ties or Optional Mounting Kit available
Enclosure Material: Silver Anodized Aluminum
REX (REMOTE EXTENDER):
USB Connectors: 2 x USB Type A Receptacle
Link Connector: 1 x RJ45
Available Current: Up to 1 Amp per USB port, 1.5 Amps total shared
Dimensions: 87.0mm x 75.0mm x 26.0mm (3.4" x 3.0" x 1.0")
Mounting: Slots for Cable Ties or Optional Mounting Kit available
Enclosure Material: Silver Anodized Aluminum
ENVIRONMENTAL:
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing
COMPLIANCE:
EMC: FCC (Class B), CE (Class B)
Environmental: RoHS2 (CE)
