Icron Technologies USB 2.0 Ranger 2301 Single Port CAT 5e/6/7 100m Extender

Product Code: IC 00-00394

Key Features
The USB 2.0 Ranger 2301 extends high-speed USB 2.0 connections up to 100m using CAT 5e/6/7 cabling. This 1-port USB 2.0 extender with ExtremeUSB is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.
$753.28 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Icron Technologies USB 2.0 Ranger 2301 Single Port CAT 5e/6/7 100m Extender

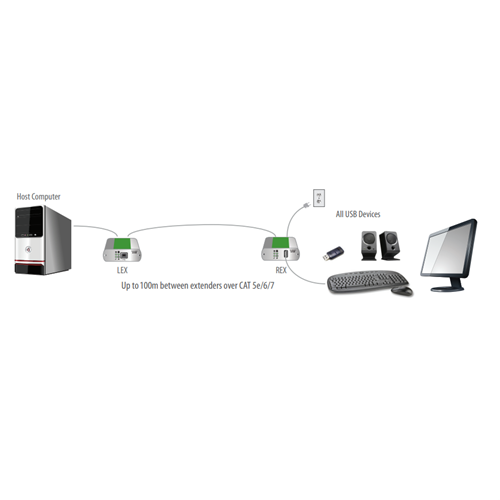

The USB 2.0 Ranger 2301 allows users to extend USB 2.0/1.1 connections up to 330 ft (100m) over a single CAT 5e/6/7 cable.

This 1-port USB 2.0 extender supports data rates at up to 480 Mbps and is plug and play – no software drivers required – for all major operating systems: Windows, macOSTM, and Linux

Additionally, this ExtremeUSB based 1-port USB 2.0 extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.

Features

  • 1-port USB 2.0 extender supporting all USB 2.0/1.1 devices up to 480 Mbps
  • Supplies up to 1 Amp to USB port
  • Mass Storage Acceleration for USB 2.0 device bulk transfers
  • Metal enclosures with FCC/CE Class B certification
  • Two year warranty
  • ExtremeUSB suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows, macOSTM, and Linux

Inclusions

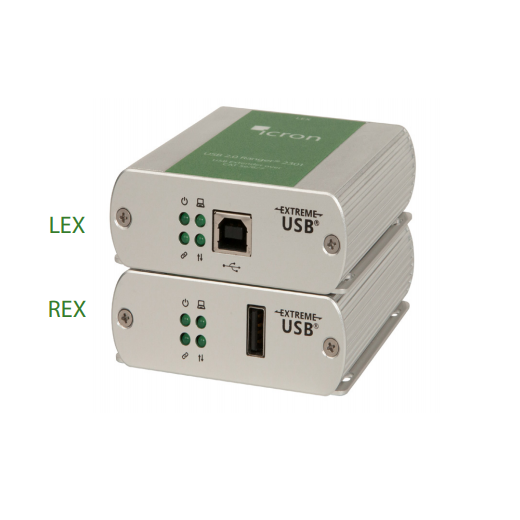

The USB 2.0 Ranger 2301 extender system includes:

  • Local Extender (LEX)
  • Remote Extender (REX)
  • 2 metre USB cable
  • Quick Start Guide
  • International power adapter with country specific cord (North America, EU, UK, Australia/NZ, or Japan)
  • Two year warranty

Applications

  • Industrial Control
  • KVM Extension
  • Digital Signage
  • Medical Device Connectivity
  • Security: web camera, access control
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

RANGE:
Direct Connect: Up to 100m (330 ft) over solid core CAT 5e/6/7
USB DEVICE SUPPORT:
Maximum USB 2.0 Throughput: Up to 480 Mbps
Maximum USB 1.1 Throughput: Up to 12 Mbps
Traffic Types: All USB 2.0 and 1.1 Traffic Types
Device Types: All USB 2.0 and 1.1 Device Types
LEX (LOCAL EXTENDER):
USB Connector: 1 x USB Type B Receptacle
Link Connector: 1 x RJ45
Dimensions: 86.0mm x 75.0mm x 26.0mm (3.4" x 3.0" x 1.0")
Enclosure Material: Silver Anodized Aluminum
REX (REMOTE EXTENDER):
USB Connector: 1 x USB Type A Receptacle
Link Connector: 1 x RJ45
Dimensions: 86.0mm x 75.0mm x 26.0mm (3.4" x 3.0" x 1.0")
Enclosure Material: Silver Anodized Aluminum
Available Current: Up to 1 Amp to USB port
Power Supply: 100-240V AC Input, 5V 3A DC Output
ENVIRONMENTAL:
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing
COMPLIANCE:
EMC: FCC (Class B), CE (Class B)
Environmental: RoHS2 (CE)
