Icron Technologies USB 2.0 Ranger 2301GE-LAN Single Port Ethernet LAN Extender

Product Code: IC 00-00399

Key Features
The USB 2.0 Ranger 2301GE-LAN extends high-speed USB 2.0 connections up to 100m over a GigE Local Area Network (LAN) or directly connect over CAT 5e/6/7 cabling.  This 1-port USB 2.0 LAN extender with ExtremeUSB is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.
$841.16 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

Icron Technologies USB 2.0 Ranger 2301GE-LAN Single Port Ethernet LAN Extender

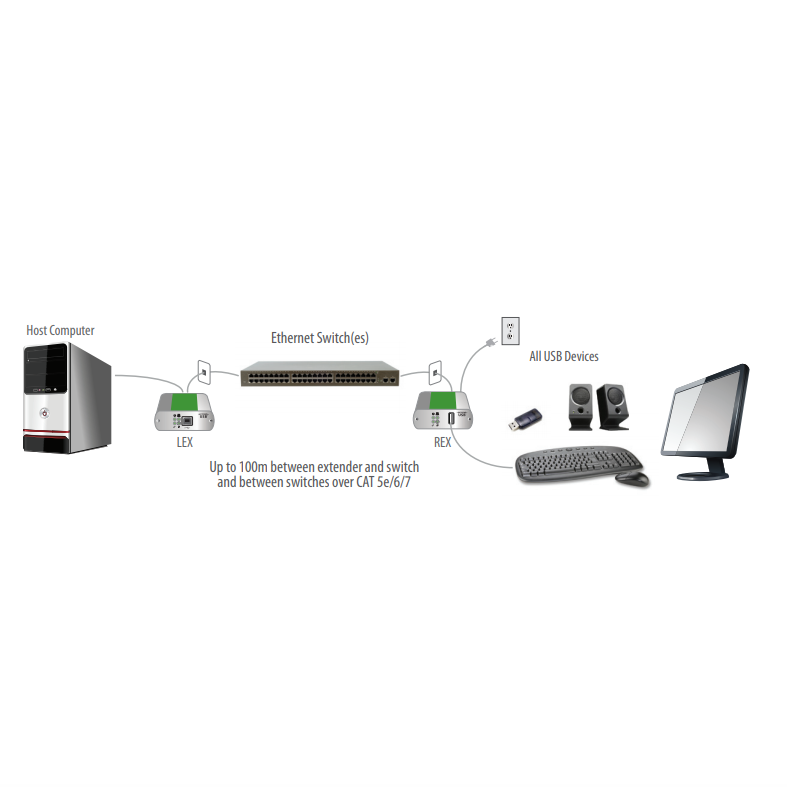

The USB 2.0 Ranger 2301GE-LAN allows users to extend USB 2.0/1.1 connections over a GigE LAN or single CAT 5e/6/7 cable up to 100m in point-to-point fashion. Extending over LAN saves on installation time and provides IT visibility.

This 1-port USB 2.0 LAN extender supports data rates at up to 480 Mbps and is plug and play – no software drivers required – for all major operating systems: Windows, macOSTM, and Linux

Additionally, this ExtremeUSB based 1-port USB 2.0 LAN extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.

Features

  • Extend all USB 2.0/1.1 devices up to 480 Mbps
  • Extender over GigE LAN or up to 100m point-to-point over single CAT 5e/6/7 cable
  • Easy installation: Pre-paired for networked configuration
  • Supplies up to 1 Amp to USB port
  • Mass Storage Acceleration for USB 2.0 device bulk transfers
  • Metal enclosures with FCC/CE Class B certification
  • Two year warranty
  • ExtremeUSB suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows, macOSTM, and Linux

Inclusions

The USB 2.0 Ranger 2301GE-LAN extender system includes:

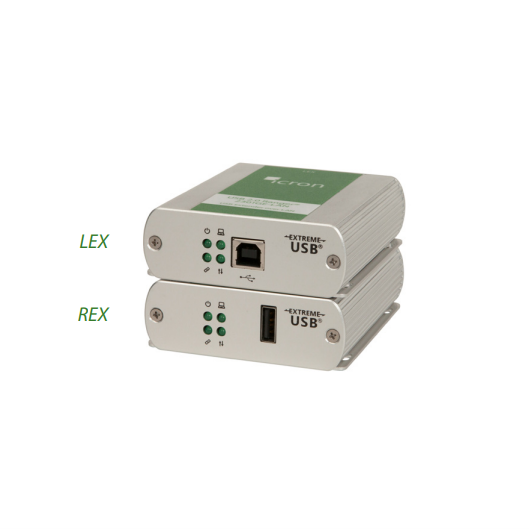

  • Local Extender (LEX)
  • Remote Extender (REX)
  • 2 metre USB cable
  • Quick Start Guide
  • International power adapter with country specific cord (North America, EU, UK, Australia/NZ, or Japan)
  • Two year warranty

Applications

The USB 2.0 Ranger 2301GE-LAN leverages existing network infrastructure for easy installation and IT visibility or it can be deployed as a direct connect/point-to-point installation over single CAT 5e/6/7 cable. This 1-port USB 2.0 LAN extender is ideally suited for the following applications:

  • Industrial Control
  • KVM Extension
  • Digital Signage
  • Interactive Whiteboards
  • Medical Device Connectivity
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

RANGE:
Direct Connect: Up to 100m (330 ft) over solid core CAT 5e/6/7
Network Connect: Up to 100m (330 ft) between switches over solid core CAT 5e/6/7
USB DEVICE SUPPORT:
Maximum Throughputs: USB 2.0: Up to 480 Mbps*; USB 1.1: Up to 12 Mbps
Traffic Types: All USB 2.0 and 1.1 Traffic Types
Device Types: All USB 2.0 and 1.1 Device Types
Maximum Number: Up to 30 devices
NETWORKING:
Standards: 1000BASE-T*
Data Traffic: Layer 2
LEX (LOCAL EXTENDER):
USB Connector: 1 x USB Type B Receptacle

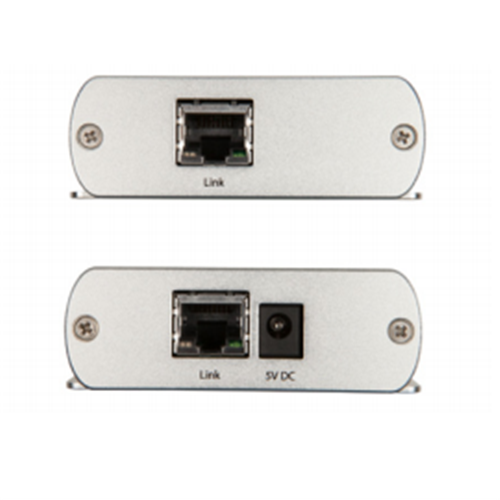

Link Connector: 1 x RJ45
Dimensions: 86.0mm x 75.0mm x 26.0mm (3.4" x 3.0" x 1.0")
Enclosure Material: Silver Anodized Aluminum
REX (REMOTE EXTENDER):
USB Connector: 1 x USB Type A Receptacle
Link Connector: 1 x RJ45
Dimensions: 86.0mm x 75.0mm x 26.0mm (3.4" x 3.0" x 1.0")
Enclosure Material: Silver Anodized Aluminum
Available Current: Up to 1 Amp to USB port
Power Supply: 100-240V AC Input, 5V 3A DC Output
ENVIRONMENTAL:
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing
COMPLIANCE:
EMC & Environmental: FCC (Class B), CE (Class B), RoHS2 (CE)
