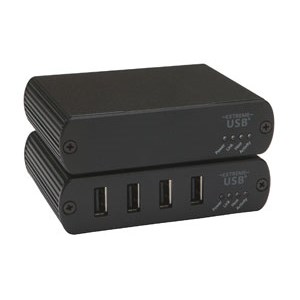

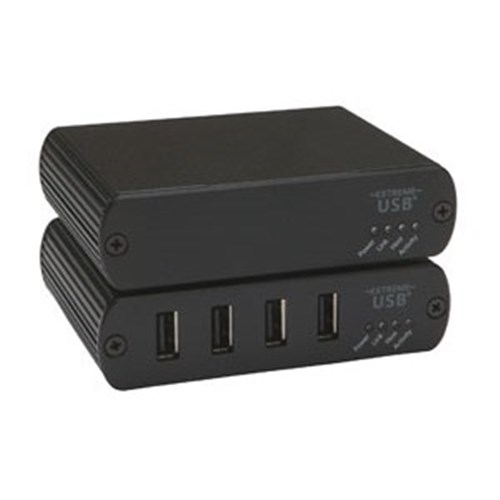

Icron Technologies USB 2.0 RG2304GE-LAN-AU Four Port Ethernet LAN Extender

Product Code: IC 01-00456

Key Features
  • Extends USB through 1000Mbps LANs (USB over Ethernet)
  • Supports all USB 2.0/1.1 compliant devices (including isochronous such as webcams or audio devices) up to 480 Mbps
  • Supplies up to 1A at each USB port (2.5mA total across all four concurrently)
  • True plug and play. No drivers required
  • Supports all major operating systems: Windows®, macOS™ and Linux®
  • Uses a standard solid core CAT 5e/6/7 cable for easy installation or existing LAN infrastructure
  • Pre-paired networked configuration for simple installation if purchased as a complete Local and Remote Extender system
  • Number of devices can be increased using additional USB hubs
  • FCC Class B
  • Rugged metal enclosure
  • Support for advanced platform features such as SwitchableUSB™, Device Class Filtering, Hot Key support, and Vendor Lock.
$1,134.10 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

USB 2.0 RG2304GE-LAN-AU Four Port Ethernet LAN Extender

The USB 2.0 RG2304GE-LAN extends USB 3.0, 2.0, and 1.1 peripherals such as flash drives, keyboards, mice,  interactive whiteboards, and isochronous devices (e.g. webcams and audio devices) over CAT 5e/6/7 cabling or across a Gigabit Ethernet Local Area Network (LAN) and supports modern USB 3.0 controllers. The RG2304GE-LAN includes the ExtremeUSB® suite of features such as true plug and play (no software drives required) and compatibility with all leading operating systems. Up to 30 USB devices or hubs can be supported over LAN. The RG2304GE-LAN also supports advanced features such as remote pairing control via Icron Technologies’ SwitchableUSB™ protocols, enabling the host and peripheral pairings to be controlled by another system, such as a video matrix switch. Product is sold as unbranded, available for private label, or as turnkey PCBAs for OEM.

Applications:

The RG2304GE-LAN leverages existing network infrastructure to extend USB devices, ideally suited for the following applications:

  • Video Matrix Systems using SwitchableUSB
  • Industrial Control
  • KVM Extension
  • Digital Signage
  • Interactive Whiteboards
  • Security and Monitoring
  • Remote Storage
  • Medical Device Connectivity
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

  • Direct Connect Range: Up to 100m (330 ft) over solid core CAT 5e/6/7 or better
  • Network Connect Range: Up to 100m (330 ft) between switches over solid core CAT 5e/6/7
  • USB Device Support:
    • Traffic Types: All USB 2.0 and 1.1
    • Device Types: All USB 3.0, 2.0 and 1.1 devices
  • Local unit USB connector: 1 x USB Type B Receptacle
  • Local unit Link connector: 1 x RJ45
  • Remote unit Link connector: 1 x RJ45
  • Remote unit USB connector: 4 x USB Type A Receptacles
  • Maximum USB devices supported: 30 USB devices or hubs
  • Power Supply: 100-240V AC input, 24V DC Output
  • Available current: Up to 1A at each USB port (2.5mA total across all four concurrently)
  • Local and Remote unit dimensions: 100mm x 76mm x 26mm (3.9” x 3.0” x 1.0”)
  • Operating temperature range: 0°C to 50°C ( 32°F to 122°F)
  • Total system shipping weight: 870 grams (1.9 lbs.)
  • Regulatory testing: FCC (Class B), CE (Class B), RoHS2 (CE)

IN THE BOX:

  • Local Extender
  • Remote Extender
  • AC power adapter & AU power cord
  • 2 meter USB cable
  • Quick Start Guide
