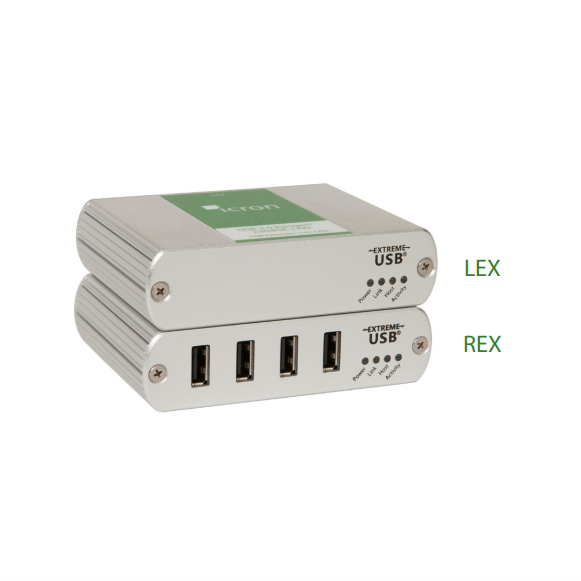

Icron Technologies USB 2.0 Ranger 2304GE-LAN Four Port Ethernet LAN Extender

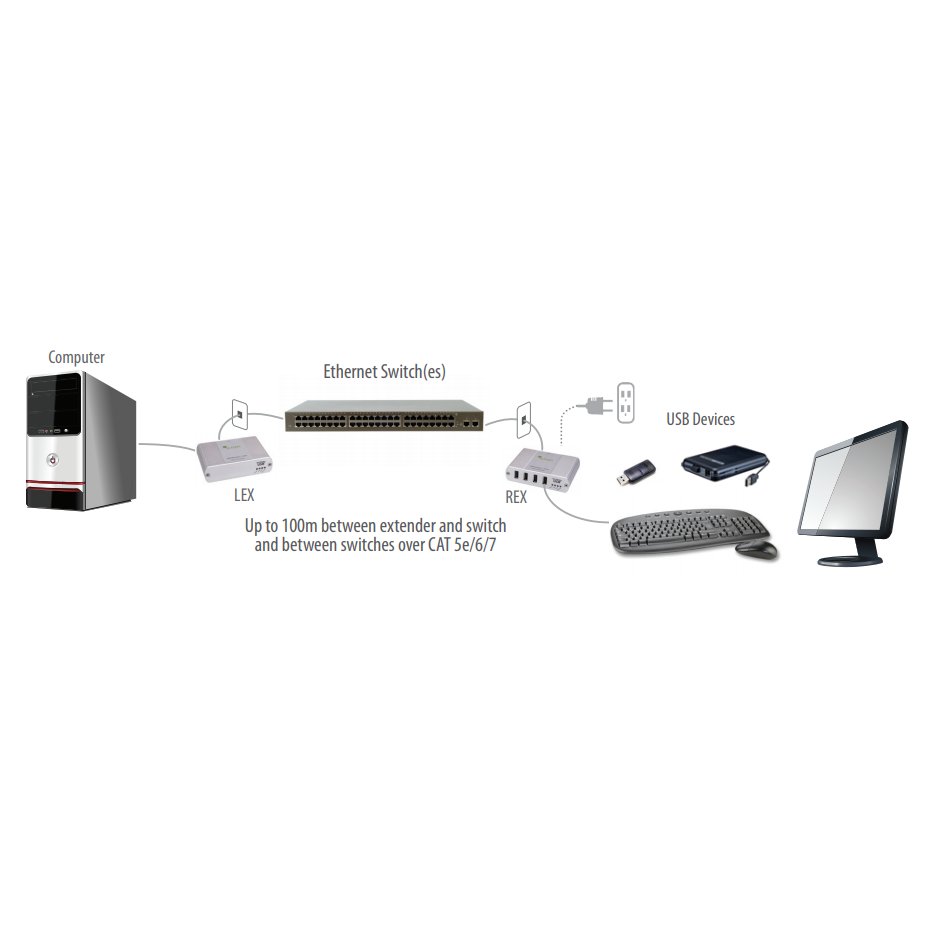

The USB 2.0 Ranger 2304GE-LAN is a four port USB 2.0 high-speed extension solution with the ability to connect USB 3.0, 2.0 and 1.1 devices  such as flash drives, keyboards, mice, interactive whiteboards and isochronous devices (e.g. webcams and audio devices) to hosts over CAT 5e/6/7 cabling or across a GigE Local Area Network (LAN) using existing cable infrastructure. Saves on installation time and provides IT visibility.

The USB 2.0 Ranger 2304GE-LAN extends USB 3.0, 2.0 and 1.1 peripherals such as flash drives, keyboards, mice, interactive whiteboards, webcams and audio devices over CAT 5e/6/7 cabling or  across a Gigabit Ethernet Local Area Network (LAN).  The Ranger 2304GE-LAN includes the ExtremeUSB^® suite of features such as true plug and play (no software drives required) and compatibility with all leading operating systems. Up to 30 USB devices or hubs can be supported over LAN.

Features

• Extends USB as direct connect or through 100Mbps or 1000Mbps LANs
• Extends USB 3.0, 2.0 and 1.1 (both low-speed and full-speed) devices
• Operates with USB 3.0, 2.0 and 1.1 hosts
• Supports all USB compliant peripherals (including isochronous devices, such as webcams or audio devices) up to 480 Mbps
• Uses a standard solid core Cat 5e cable for easy installation or existing LAN infrastructure
• Pre-paired networked configuration for simple installation
• Number of devices can be increased using additional USB hubs
• FCC Class B
• Rugged metal enclosure
• ExtremeUSB^® suite of features:
  • Transparent USB extension
  • True plug and play; no software drivers required
  • Works with all major operating systems: Windows^®, OS X^® and Linux^®

Applications:

• Remote storage
• Security and monitoring
• Industrial Control
• Keyboard and mouse

Note: Supports Point-To-Point but not Switchable USB or Simultaneous Users
