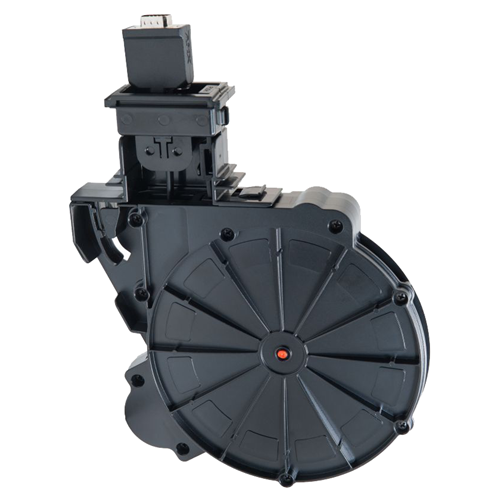

AMX HPX-AV103-RGB+A-R - RGB with Stereo Module with Retractable MyTurn Ready Cable

Product Code: AMX FG552-35

Key Features
The HPX-AV103-VGA+A-R, VGA with Stereo Module with Retractable MyTurn ready Cable provides a compact solution with 5 feet available pullout from HydraPort HPX-600, 900 and 1200 Connection Ports or Touch Connection Ports
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

The HydraPort® RGB with Stereo Module with Retractable Cable delivers a compact, easy to install solution that organizes and hides cables in virtually any type of conference table, including narrow tables, and those with glass inlay. With the addition of a clip-on MyTurn™ Source Selection Button, it is easy to instruct the system to switch to the selected input.

Learn important installation, configuration and programming techniques in the following course(s) from Harman Professional University:

  • Getting Started with HydraPort

 For schedules and registration for these and any Harman Professional University courses, visit College of AMX

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Dimensions

1 1/2 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)
Weight Approximately 1lb (0.46 Kg)
Integrated Cable
  • RGB with Stereo
  • Pullout Length: 5 ft (1.52m)
  • Pigtail: 5 ft (1.52m)
  • Pigtail Connector: 15-pin HD male and 3.5 mm stereo male
  • Resolution Support: Up to 1600 x 1200 @60Hz
  • Pixel Clock: 162 MHz
Front Panel Components 15-pin HD male and 3.5 mm stereo male
Long-Term Reliability Tested to 10,000 pull and release cycles
Optional Accessories
  • HPA-MYT-TX, MyTurn Source Selector Button (FG554-21)
  • HPA-MYT-RX, MyTurn Source Selector Receiver (FG554-23)
  • CBL-RGB+A-FL2, RGB with Stereo MyTurn-Ready Flat Cable (FG10-2195-16)
FG Numbers FG552-35
