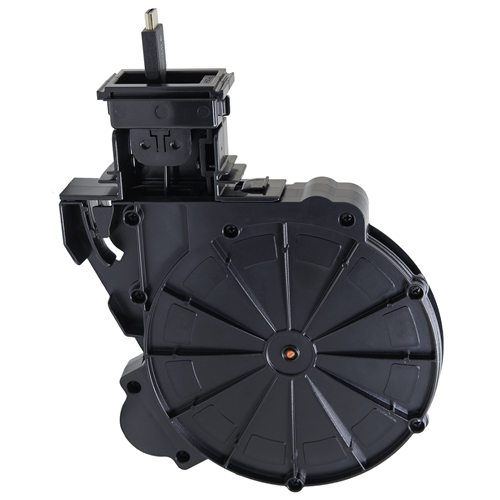

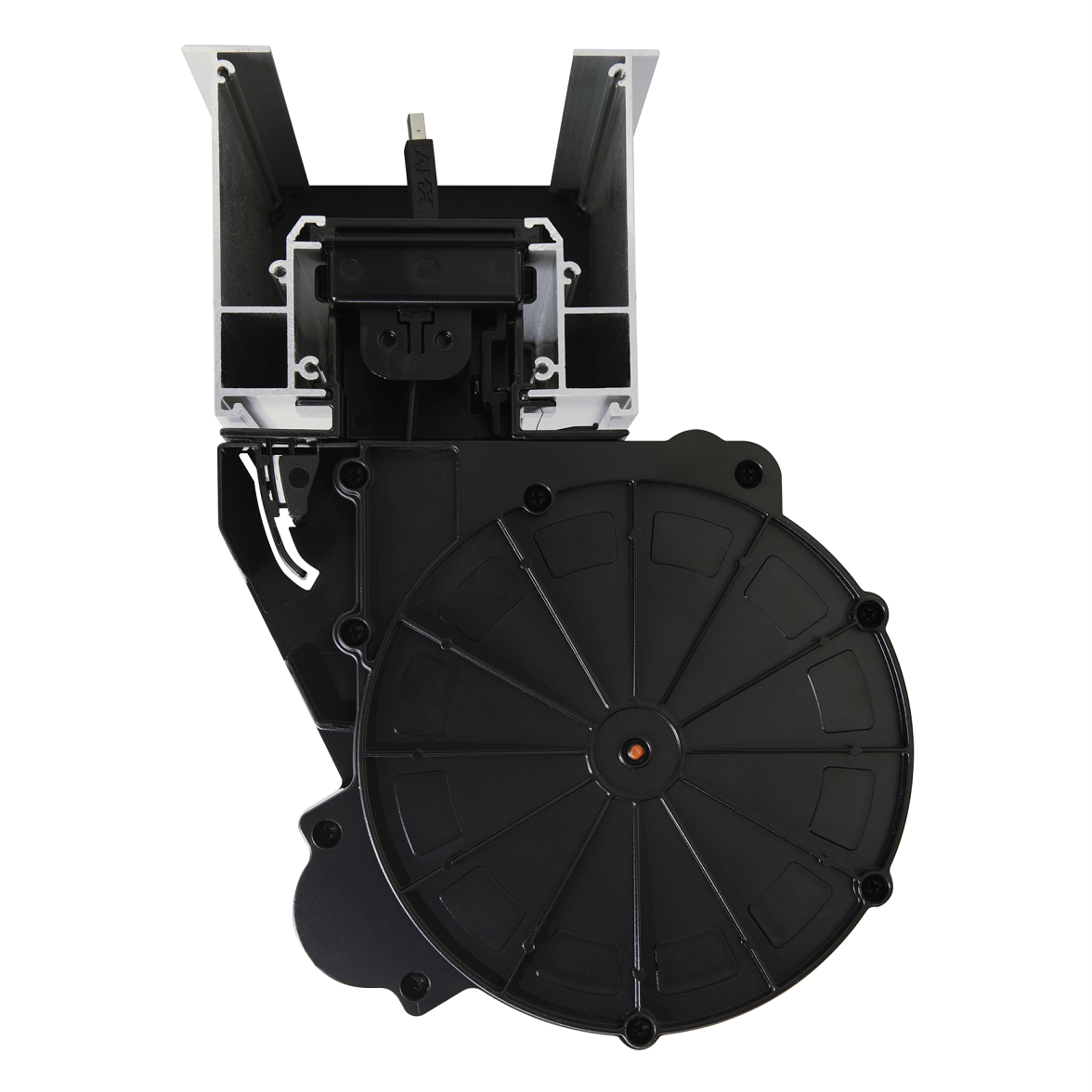

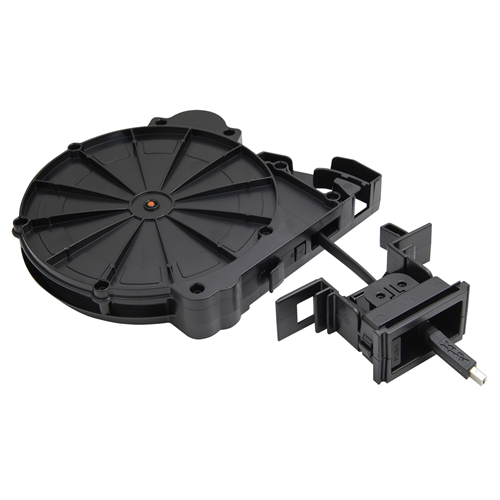

AMX HPX-AV102-HDMI-R - HDMI 4K60 Module with Retractable MyTurn Ready Cable

Product Code: AMX FG552-32

Key Features
The HPX-AV102-HDMI-R 4K60 HDMI Module with Retractable MyTurn ready Cable delivers digital video in resolutions up to 4K @60hz with 5 feet available pullout from HydraPort HPX-600, 900 and 1200 Connection Ports or Touch Connection Ports
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

The HydraPort® HDMI 4K60 Module with Retractable Cable delivers digital video in resolutions up to 4K @60Hz. The compact, easy to install solution organizes and hides cables in virtually any type of conference table, including narrow tables, and those with glass inlay. With the addition of a clip-on MyTurn™ Source Selection Button, it is easy to instruct the system to switch to the selected input.

Learn important installation, configuration and programming techniques in the following course(s) from Harman Professional University:

  • Getting Started with HydraPort

 For schedules and registration for these and any Harman Professional University courses, visit College of AMX.

Features

  • No Assembly, Adjustments or Terminations  Module installs quickly and easily with no special mounting
  • Flat, High-Speed HDMI cable  With support for resolutions up to 4K @60Hz, the cable ensures absolute best picture quality in a compact design
Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Dimensions

1 1/2 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)
Weight Approximately 1lb (0.46 Kg)
Integrated Cable
  • HDMI 4K60 Retractable Cable at 18 Gbps
  • Pullout Length: 5 ft (1.52m)
  • Pigtail: 5 ft (1.52m)

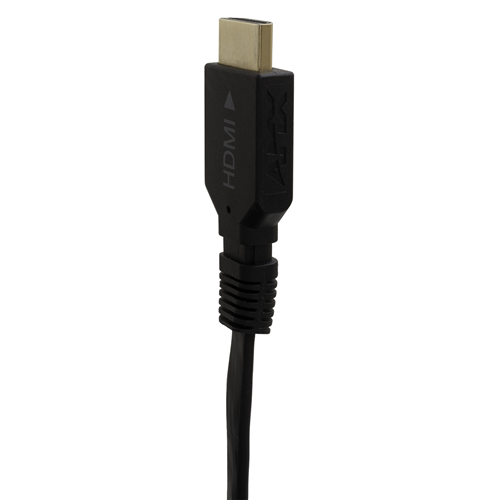

  • Pigtail Connector: HDMI Male
  • Data Rate: 18 Gbps
  • Resolution Support: up to 4096 x 2160 @60Hz
  • Deep Color Support: Yes
  • 3D Format Support: Yes

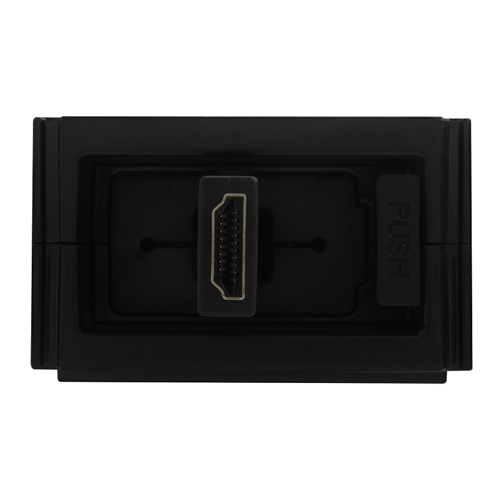

Front Panel Components Pull-Out Connector: HDMI Male
Long-Term Reliability Tested to 10,000 pull and release cycles
Optional Accessories
  • HPA-MYT-TX, MyTurn Source Selector Button (FG554-21)
  • HPA-MYT-RX, MyTurn Source Selector Receiver (FG554-23)
  • CBL-HDMI-FL2-16, 16 ft HDMI MyTurn-Ready Flat Cable (FG10-2192-16)
  • CBL-HDMI-FL2-32, 32 ft HDMI MyTurn-Ready Flat Cable (FG10-2192-32)
FG Numbers FG552-32
