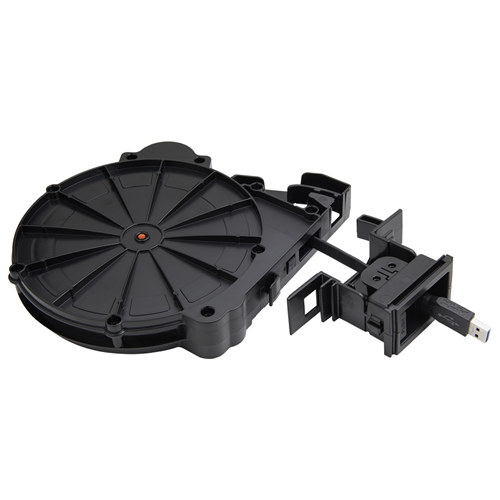

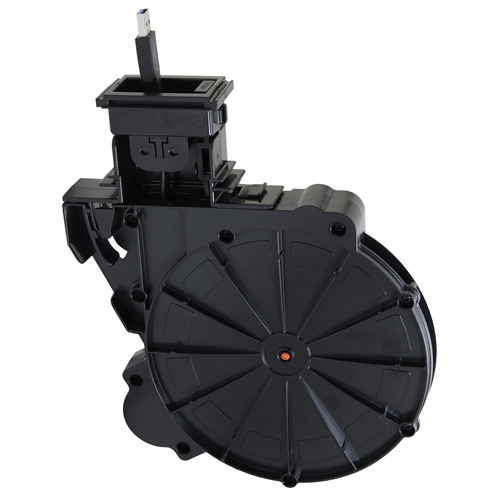

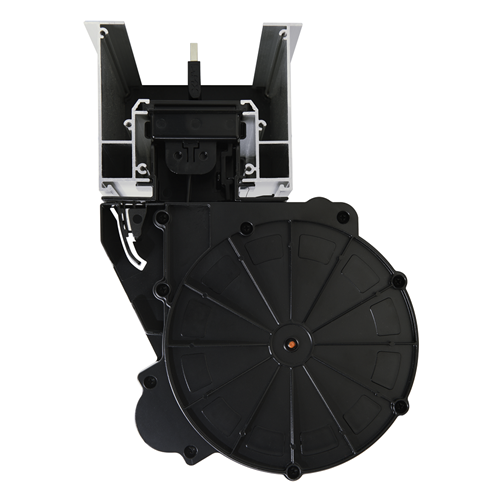

AMX HPX-AV102-USB-R - USB 3.0 Module with Retractable MyTurn Ready Cable

Product Code: AMX FG552-37

Key Features
The HPX-AV102-USB-R USB 3.0 Module with Retractable MyTurn ready Cable provides a compact solution with 4 feet available pullout from HydraPort HPX-600, 900 and 1200 Connection Ports or Touch Connection Ports
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

The HydraPort® 3.0 Module with Retractable Cable allows you to connect your laptop to devices in the room such as a Sereno Web Camera or an Alero Web Conferencing Mixer. You can also connect through a rack-mounted USB 3.0 dock to connect to the display, Ethernet, cameras, mics, and more via a single USB 3.0 cable. The compact, easy to install solution organizes and hides cables in virtually any type of conference table, including narrow tables, and those with glass inlay. With the addition of a clip-on My MyTurn Source Selection Button, it is easy to instruct the system to switch to the selected input.

Learn important installation, configuration and programming techniques in the following course(s) from Harman Professional University:

  • Getting Started with HydraPort

 For schedules and registration for these and any Harman Professional University courses, visit College of AMX.

Features

  • No Assembly, Adjustments or Terminations  Module installs quickly and easily with no special mounting
Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Dimensions

1 1/2 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)

Weight Approximately 1lb (0.46 Kg)
Integrated Cable
  • Universal Serial Bus (USB) 3.0 Retractable Cable
  • Pullout Length: 5 ft (1.52m)
  • Pigtail: 5 ft (1.52m)

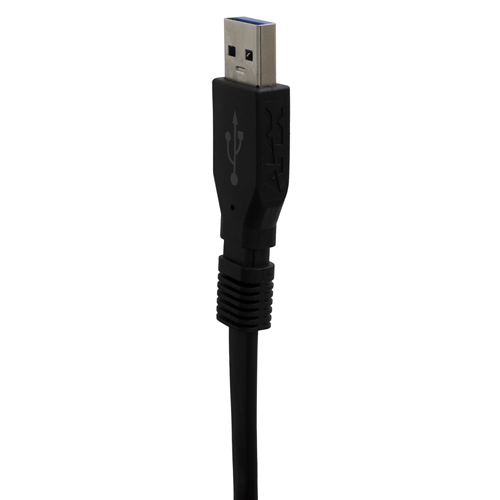

  • Pigtail Connector: USB Type A Male (use included adapters to change to a USB Type A female or USB Type B male connection)
  • Data Rate: 5 Gbps
Front Panel Components Pull-Out Connector: USB Type A Male
Long-Term Reliability Tested to 10,000 pull and release cycles
Optional Accessories
  • HPA-MYT-TX, MyTurn Source Selector Button (FG554-21)
  • HPA-MYT-RX, MyTurn Source Selector Receiver (FG554-23)
  • CBL-USB-FL2, USB MyTurn-Ready Flat Cable (FG10-2197-16)
  • NMX-VCC-1000, Sereno Video Conferencing Camera (FG3211-10)
FG Numbers FG552-37
