Roadworx RW200120 Analog Mic Cable 1 Pair 20AWG Black 100m Reels

Product Code: RW200120BK100

Key Features

Analog Mic Cable 1 Pair 20AWG Black 100M Reels

$3.00 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

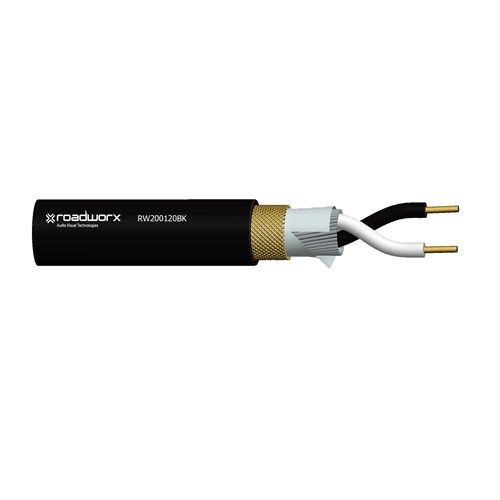

Roadworx RW200120 Analog Mic Cable 1 Pair 20AWG Black 100M Reels

Description

26/0.15TC x 1P + PVC + Cotton Yarn + Cotton Tape + 112/0.12TC
Braiding + PVC Sheath Φ6.7mm

Applicable Standards

N/A

Suitable Applications

Flexible and rugged cables for connecting of low level microphones and musical instruments in semi-permanent and stage-redeployment.

Please Note: This cable is able to be cut in lengths other than 50m increments if needed. Please contact Sales@madisonav.com.au to enquire about cut lengths.

Colours also available - contact us for colour options, MOQ may apply

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Cable Description

Conductor 26/0.15+/-0.006TC
Insulation Pair: 1
Material: PVC
Colour: Black, White
Min. Thickness 0.46mm / Nom. Thickness ≥0.58mm / Nom. O.D 2.05+/-0.1mm
Filler Cotton Yarn, Cotton Tape 100% Coverage
Braiding 16/7/0.12+/-0.006TC / Nom. O.D 4.78mm Coverage 85%
Sheath Material: PVC / Colour: Black
Min. Thickness 0.71mm / Nom. Thickness ≥0.89mm / Nom. Sheath O.D 6.7+/-0.2mm
Spark Voltage: 3000V a.c

Electrical Properties

Conductor Max D.C Resistance 41.16 ohm/km 20°C
Outer Conductor Max D.C Resistance 15.0 ohm/km 20°C
Mutual Capacitance: Core to Core 185 pF/m @ 1KHz
Mutual Capacitance: Core to Shield 310 pF/m @ 1KHz
Voltage Test: Core to Core 1000V a.c/1min
Voltage Test: Core to Screen 1000V a.c/1min

Physical Properties

Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2
Insulation Elongation ≥100%
Insulation Tensile Strength ≥13 N/mm2
Flame Test VW-1

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 32N
Min. Bend Radius (install) 67mm
Approximate Mass 6.08kg/100m
Sheath Printing ROADWORX RW200120 Analog Microphone Cable, 1
pair, 20AWG (meter marking)
