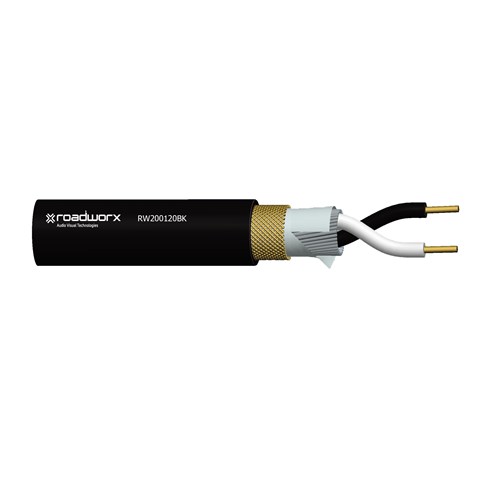

Roadworx RW200120 Analog Mic Cable 1 Pair 20AWG Black 500m Reels

Product Code: RW200120BK500

Key Features

Analog Mic Cable 1 Pair 20AWG Black 500M Reels

$3.00 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 12+ weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Roadworx RW200120 Analog Mic Cable 1 Pair 20AWG Black 500M Reels

Description

26/0.15TC x 1P + PVC + Cotton Yarn + Cotton Tape + 112/0.12TC
Braiding + PVC Sheath Φ6.7mm

Applicable Standards

N/A

Suitable Applications

Flexible and rugged cables for connecting of low level microphones and musical instruments in semi-permanent and stage-redeployment.

Please Note: This cable is able to be cut in lengths other than 50m increments if needed. Please contact Sales@madisonav.com.au to enquire about cut lengths.

Colours also available - contact us for colour options, MOQ may apply

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.

Cable Description

Conductor 26/0.15+/-0.006TC
Insulation Pair: 1
Material: PVC
Colour: Black, White
Min. Thickness 0.46mm / Nom. Thickness ≥0.58mm / Nom. O.D 2.05+/-0.1mm
Filler Cotton Yarn, Cotton Tape 100% Coverage
Braiding 16/7/0.12+/-0.006TC / Nom. O.D 4.78mm Coverage 85%
Sheath Material: PVC / Colour: Black
Min. Thickness 0.71mm / Nom. Thickness ≥0.89mm / Nom. Sheath O.D 6.7+/-0.2mm
Spark Voltage: 3000V a.c

Electrical Properties

Conductor Max D.C Resistance 41.16 ohm/km 20°C
Outer Conductor Max D.C Resistance 15.0 ohm/km 20°C
Mutual Capacitance: Core to Core 185 pF/m @ 1KHz
Mutual Capacitance: Core to Shield 310 pF/m @ 1KHz
Voltage Test: Core to Core 1000V a.c/1min
Voltage Test: Core to Screen 1000V a.c/1min

Physical Properties

Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2
Insulation Elongation ≥100%
Insulation Tensile Strength ≥13 N/mm2
Flame Test VW-1

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 32N
Min. Bend Radius (install) 67mm
Approximate Mass 6.08kg/100m
Sheath Printing ROADWORX RW200120 Analog Microphone Cable, 1
pair, 20AWG (meter marking)
