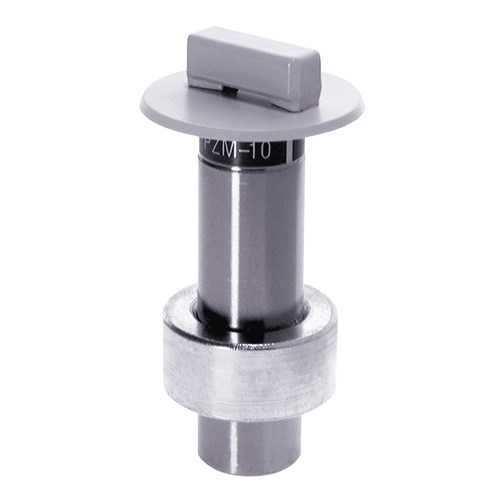

AKG PZM10 Professional flush mount boundary layer microphone

Product Code: AKG 3328H00010

Key Features
Low profile boundary layer microphone
$585.56 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

The PZM10, part of the Pressure Zone Microphone® line, is designed for security, surveillance, and conference-table use. The special housing design allows the microphone to be mounted into tables, walls or ceilings easily and inconspicuously.

Using Pressure Zone Microphone® technology, the PZM10 is highly sensitive and delivers a wide and smooth frequency response. Thus the PZM10 is characterized by excellent clarity and a consistent pickup anywhere around the mic.

Features

Hemispherical polar pattern

For clear, intelligible pickup of speech

Low-profile, cylindrical design

Perfect for wall or tabletop installation

Mic level output

Male XLR connector for optimized level matching

PZM10 powered by 12V - 48V phantom power, XLR connector

Connects to all standard mixers with phantom power out

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Audio frequency bandwidth 80 - 20000 Hz
Equivalent noise level 26 dB-A
Sensitivity 2.5 mV/Pa
Signal to Noise 68 dB-A
Recommended load impedance 2000 Ohms

Dimensions

Height 72 mm
Diameter 39 mm
Net Weight 74 g

Design

Finish off-white

Audio Output

Type Balanced XLR
Gender Male
Contacts 3-pin

Powering Interface

Voltage 12 to 48 V

Application

Retail Yes

Device

Boundary Layer Microphone Yes
