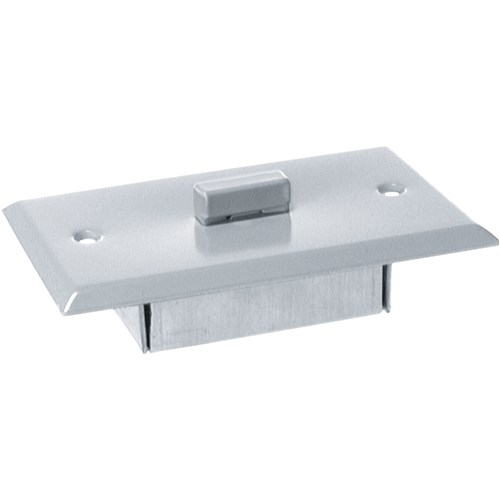

AKG PZM11 LL Professional flush mount line level boundary layer microphone

Product Code: AKG 3340H00010

Key Features
Professional flush-mount line-level boundary layer microphone
$585.56 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

The PZM11 professional boundary layer microphone is designed for security and surveillance applications. The PZM11 is characterized by a consistent pickup anywhere around the mic. Low frequencies below the voice range are rolled off to reduce the pickup of heating, ventilation or air-conditioning rumble (HVAC noise). The high-frequency response is boosted slightly to aid clarity and articulation.

The PZM11 has a mic-level output and is powered by 12-48V phantom power. Electronics on the rear of the plate offer screw terminals, eliminating the need for connectors.

Features

Hemispherical polar pattern

For clear, intelligible pickup of speech

Low-frequency rolloff

Effectively reduces HVAC rumble

Screw terminal

No need for connectors

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Audio frequency bandwidth 80 - 20000 Hz
Equivalent noise level 26 dB-A
Sensitivity 5 mV/Pa
Signal to Noise 68 dB-A

Dimensions

Length 115 mm
Width 70 mm
Height 29 mm
Net Weight 71 g

Design

Finish off-white

Audio Output

Type screw material

Powering Interface

Voltage 12 to 48 V

Application

Retail Yes

Device

Boundary Layer Microphone Yes
